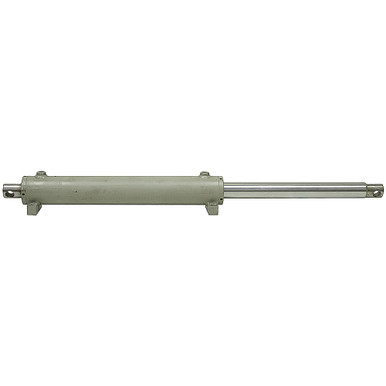

2.75" x 15.75" x 1.75" Double Acting Double Rod Hydraulic Cylinder

2.75″ x 15.75″ x 1.75″ Double Acting Double Rod Hydraulic Cylinder

Original price was: $119.95.Current price is: $29.99.

SKU: 902585 Category:

Description

2.75″ x 15.75″ x 1.75″ DOUBLE ACTING DOUBLE ROD HYDRAULIC CYLINDER
Unused old inventory. Double acting double rod hydraulic cylinder. Cylinder has 4.13″ x 1″ x 1″ foot mount with 3/8″-16 drilled and tapped holes on 3.125″ bolt centers. Cylinder rod ends machined down 7/8″ of an inch. Numbers on cylinder 58577.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 2.75″ x 15.75″
  • Barrel Thickness 0.192″
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI
  • Rod Dia. 1.75″
  • Ports SAE 4
  • Retracted Length 39.875″
  • Gland Face to Rod Pin Center 1.25″
  • Shpg. 47 lbs.
END MOUNTINGS
  • Rod End Thru-Hole
  • Width 0.84″
  • Pin Center to Rod End 3/4″
  • Pin Hole 3/4″
  • Base End Thru-Hole
  • Width 0.84″
  • Pin Center to Base 3/4″
  • Pin Hole 3/4″
