Description

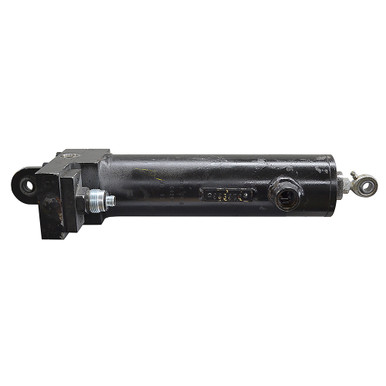

2.5″ x 6″ x 1.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Cylinder has internal stroke position sensor with external cannon type plug. CCI numbers on cylinder CCI7956 C4269018966.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 2.5″ x 6″
- Barrel Thickness 0.25″
- Gland Retainer Threaded in gland
- Pressure 3000 PSI
- Rod Dia. 1.5″
- Rod Thickness 0.5″
|
- Ports SAE 8
- Retracted Length 16.375″
- Gland Face to Rod Pin Center 1.75″
- Shpg. 26 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Width 0.44″
- Pin-Center-To-Swivel Eye-End 0.5″
- Swivel Eye Width 0.58″
- Pin Hole 7/16″
|
- Base End Swivel Eye
- Width 0.39″
- Pin-Center-To-Swivel Eye-End 0.875″
- Swivel Eye Width 0.432″
- Pin Hole 1/2″
|
