2.5" x 49.5" x 1.75" Double Acting Tandem Hydraulic Cylinder

2.5″ x 49.5″ x 1.75″ Double Acting Tandem Hydraulic Cylinder

Original price was: $539.95.Current price is: $107.99.

SKU: 904651 Category:

Description

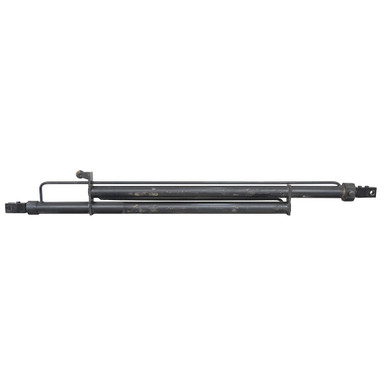

2.5″ x 49.5″ x 1.75″ DOUBLE ACTING TANDEM HYDRAULIC CYLINDER
Unused old inventory. Double acting tandem hydraulic cylinder. Cylinder rods are hollow. Numbers on cylinder 6372004402.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 2.5″ x 49.5″
  • Barrel Thickness 0.259″
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI
  • Rod Dia. Hollow, 1.75″
  • Rod Thickness 0.252″
  • Ports SAE 8
  • Retracted Length 89.75″
  • Gland Face to Rod Pin Center 4.625″
  • Shpg. 229 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 1.57″
  • Pin-Center-To-Tang-End 1″
  • Pin Hole 1″
  • Rod End Male Trunnion
  • Pin Outside/Inside Width 7″/4.32″
  • Pin-Center-To-Rod Pin Center 6″
  • Pin Center To Base End 63″
  • Pin Diameter 1-3/16″
  • Base End Clevis
  • Outside Width 2.39″
  • Inside Width 1.07″
  • Throat Depth 2″
  • Pin Hole 1″
