Description

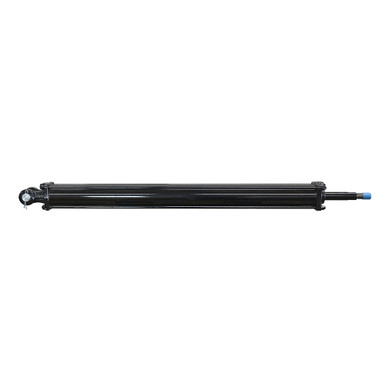

2.5″ x 29.875″ x 1.063″ HYDRAULIC CYLINDER
Unused old inventory. Tie-rod, double acting hydraulic cylinder, stamped 031309 20927695.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 2.5″ x 29.875″
- Gland Retainer 4-Hole
- Pressure 2500 PSI max.
- Rod Dia. 1.063″
|
- Extend Port SAE 5
- Retract Port SAE 6
- Retracted Length 42.5″
- Gland Face to Rod Pin Center 5.875″
- Shpg. 37 lbs.
|
| END MOUNTINGS |
- Rod End Threaded
- Thread size-Pitch 3/4″-16 TPI
- Thread Length 1.75″
|
- Base End Clevis
- Outside Width 2.679″
- Inside Width 1.188″
- Throat Depth 2.625″
- Pin Hole 1″
|
