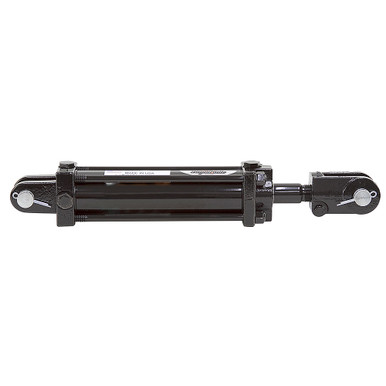

2.5" x 24" x 1.25" Double Acting Hydraulic Cylinder Prince Royal Plate B250240ABAAA07B

2.5″ x 24″ x 1.25″ Double Acting Hydraulic Cylinder Prince Royal Plate B250240ABAAA07B

Original price was: $486.00.Current price is: $97.20.

SKU: 900274 Category:

Description

PRINCE MFG. ROYAL PLATE DOUBLE ACTING TIE-ROD HYDRAULIC CYLINDER
Brand new, PRINCE Royal Plate Plus double acting tie-rod cylinders. Premium quality with superior materials and workmanship. The Royal Plate Plus cylinder combines two rod coatings to provide excellent wear, hardness and corrosion protection. Aircraft quality two-part polyester urethane paint that outperforms powder coating for the life of the cylinder. High quality seals and steel components. 3000 PSI working pressure. 7 year warranty against rust and corrosion.

SPECIFICATIONS
  • Brand PRINCE Mfg.
  • Model Number B250240ABAAA07B
  • Type Double-Acting
  • Bore x Stroke 2.5″ x 24″
  • Pressure 3000 PSI
  • Rod Dia. 1.25″
  • Column Load 8670 lbs.
  • Ports SAE 8
  • Retracted Length 34.25″
  • Shpg. 44 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 2.5″
  • Inside Width 1.06″
  • Throat Depth 1.8125″
  • Pin Hole 1.00″
  • Base End Clevis
  • Outside Width 2.375″
  • Inside Width 1.06″
  • Throat Depth 1.875″
  • Pin Hole 1.00″
