Description

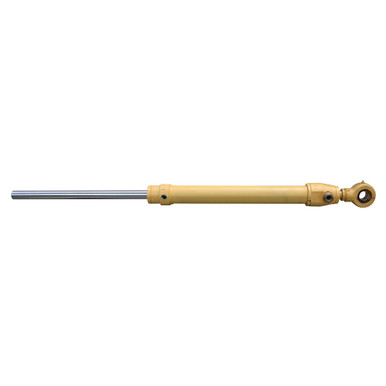

2.5″ x 22″ x 1.5″ DOUBLE ROD HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting, double rod hydraulic cylinder. Retract ports are in the male trunnion, with ports on both sides. Two extend ports on base end 180° of each other. Wiper is cracked on base rod end, sold as-is.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 2.5″ x 22″
- Gland Retainer Bolt on, both ends
- Pressure 2500 PSI max.
- Rod Dia. 1.5″
|
- Ports 1/2″ NPT
- Retracted Length 6.25″
- Gland Face to Rod Pin Center 4.25″
- Shpg. 67 lbs.
|
| END MOUNTINGS |
- Rod Ends Swivel Eye and Plain
- Width 2.1160″
- Pin-Center-To-Swivel Eye-End 1.986″
- Swivel Eye Width 1.375″
- Pin Hole 1.5″
|
- Base End Male Trunnion
- Pin Outside/Inside Width 5.5″ / 3.5″
- Pin-Center-To-Rod Pin Center 6.25″
- Pin Center To Base End 29″
- Pin Diamter 1.5″
|
