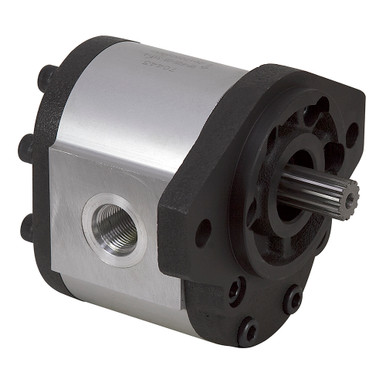

2.38 cu in Hydraulic Pump Dynamic GP-F25-39-S13-C

Description

2.38 CU IN DYNAMIC GP-F25-39-S13-C HYDRAULIC PUMP
Brand new. Dynamic GP-F25-39-S13-C hydraulic gear pump. Constructed of an aluminum center section and cast iron end plates.

SPECIFICATIONS

• Manufacturer Dynamic
• Model Number 70473
• Build Number  GP-F25-39-S13-C
• Disp. 2.38 cu. in. / rev.
• Pump Type Gear
• Rotation CW
• Pressure:
     3625 PSI Peak
• Speed:
     2000 RPM Rated
     3000 RPM Max.
• Flow:
     19.16 GPM Rated
     28.75 GPM Max.
• Mount 2 bolt SAE B
• Shaft 7/8″ dia. x 1.81″ long 13T splined
• Rqd. Filtration 25 micron
• Inlet Port SAE 16
• Outlet Port SAE 12
• Size 5.62″ x 6.85″ x 6.32″
• Shpg. 22 lbs.
