Description

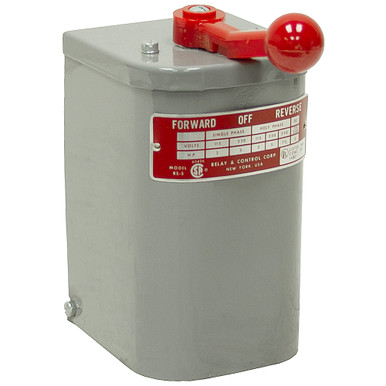

REVERSING DRUM SWITCH SINGLE OR 3 PHASE
Brand new, drum type reversing switch. Double-pole, double-throw, center-off maintained. Heavy duty copper contacts, painted metal housing. Use with single or 3 phase circuits. UL and CSA listed.
SPECIFICATIONS
- Brand Relay & Control Corp.
- Model RS-5
- Contact style DPDT-CO
- Contact Ratings
- Single Phase
2 HP @ 115 Volt AC
3 HP @ 230 Volt AC - 3 Phase
5 HP @ 230 Volt AC
7.5 HP @ 460 Volt AC - Lever motion 3 position, maintained
- Mount 4 bolts on base, 2″x4.75″
- Size 3.5″ x 6.2″ x 5.6″
- Shpg. 4 lbs.
