Description

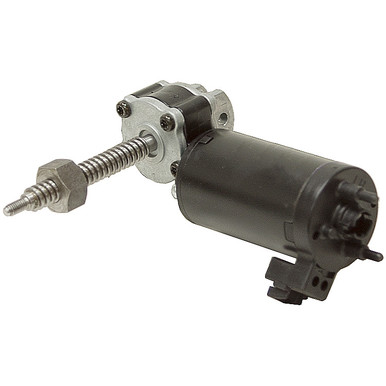

12 VOLT DC LINEAR ACTUATOR
New, linear actuator originally made for use in electric automotive seats. No clutch or limit switches. Permanent magnet type motor. Traveling nut has 7/8″ wrench flats. Socket at rear of motor for 1/8″ square drive cable. Output to left when viewed from motor end with output shaft above motor centerline.
SPECIFICATIONS
- Voltage 12 Volt DC
- Amps 1.5 no load
- Output Orientation LH
- Travel 2-1/4″
- Extension time 6 seconds full travel
- Rotation reversible
- Enclosure Fully enclosed
- Duty Intermittant
- Mount 1/4″ clevis, 3/8″ between ears
- Shaft 7/16″-8 ACME thread w/M6x1 LH at end
- Overall size 6″ x 2.5″ x 5.5″
- Shpg. 2.8 lbs.
