Description

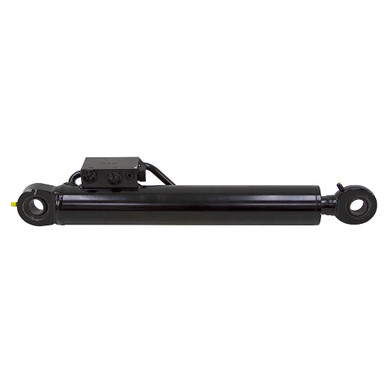

2.16″(55mm x 12.55″(319mm) x 1.18″(30mm) DOUBLE ACTING HYDRAULIC CYLINDER
New. MANITOU double acting hydraulic cylinder. Has pilot operated check valve. Numbers on cylinder 51300858.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 2.16″(55mm) x 12.55″(319mm)
- Barrel Thickness 0.197″
- Gland Retainer Threaded in
- Pressure 3000 PSI
- Rod Dia. 1.18″(30mm)
|
- Ports M14-1.5
- Retracted Length 20.35″
- Gland Face to Rod Pin Center 2.44″
- Shpg. 24 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Width 0.75″
- Pin-Center-To-Swivel Eye-End 1.5″
- Swivel Eye Width 0.875″
- Pin Hole 0.98″(25mm)
|
- Base End Swivel Eye
- Width 1.125″
- Pin-Center-To-Swivel Eye-End 1.5″
- Swivel Eye Width 0.875″
- Pin Hole 0.98″(25mm)
|
