Description

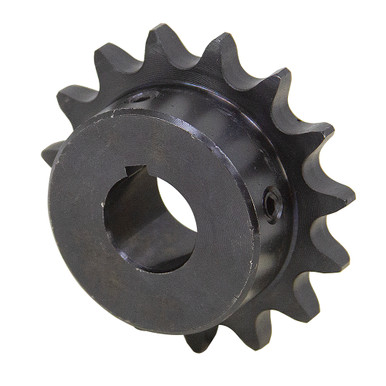

40 PITCH ANSI ROLLER CHAIN SPROCKET
New.ANSI standard 40 pitch roller chain sprocket.Bored to size.One-piece carbon steel forged construction with hardened teeth and black oxide finish.Two set screws.Set screws are located directly over the keyway and 90° from keyway.Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch 40
- Number of Teeth 19
- Bore Size 1-7/16″
- Model Number 40BS19H-1-7/16
- Outside Diameter 3.30″
- Hub Diameter 2-1/2″
- Hub Type B (Hub on one side)
- Length Through Bore 1″
- Keyway Size 3/8″ wide x 3/16″ depth
- Shpg. 1.17 lbs.
