Description

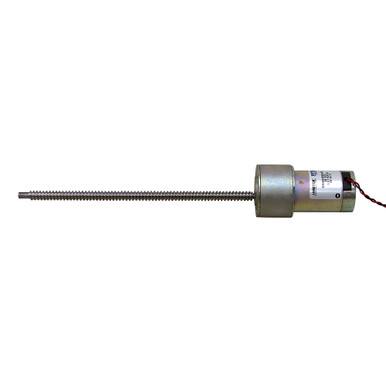

7″ TRAVEL 24 VDC LINEAR ACTUATOR GEARMOTOR
New, AMETEK PITTMAN model GM9234E992-R1 parallel-shaft gearmotor. Intended for use with nylon travelling nut to move along shaft. No limit switches. (Nylon travelling nut not included.)
SPECIFICATIONS
- Travel 7″
- Full Stroke Time 4 seconds
- Shaft Speed 188 RPM
- Voltage 24 VDC
- Amperage 0.15 Amps @ No Load
- Gear Ration 5.9:1
- Rotation Reversible
- Duty Intermittent
- Enclosure TENV
- Face Mount Two 10-32 tapped holes on 1-1/2″ centers
- Rear Mount Four 6-32 tapped holes on 11/16″ x 11/16″ centers
- Shaft 3/8″-8 round thread lead screw
- Size 3-13/16″ x 2″ dia.
- Shpg. 3 lbs.
