Description

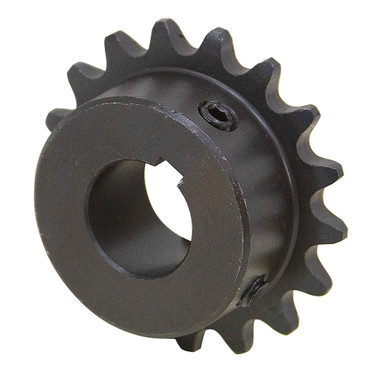

35 PITCH ANSI ROLLER CHAIN SPROCKET
New.ANSI standard 35 pitch roller chain sprocket.Bored to size.One-piece carbon steel forged construction with hardened teeth and black oxide finish.Two set screws.Set screws are located directly over the keyway and 90° from keyway.Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch 35
- Number of Teeth 18
- Bore Size 7/8″
- Model Number 35BS18H-3/4
- Outside Diameter 2.35″
- Hub Diameter 1-23/32″
- Hub Type B (Hub on one side)
- Length Through Bore 3/4″
- Keyway Size 3/16″ wide x 3/32″ depth
- Shpg. 0.75 lbs.
