Description

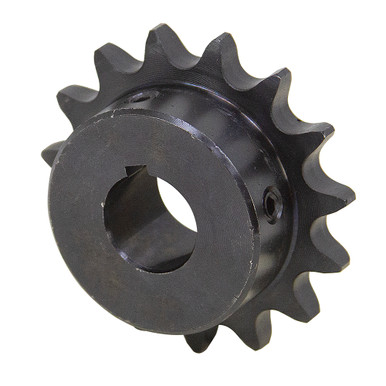

40 PITCH ANSI ROLLER CHAIN SPROCKET
Brand new. ANSI standard 40 pitch roller chain sprocket. Bored to size. One-piece carbon steel forged construction with hardened teeth and black oxide finish. Two set screws. Set screws are located directly over the keyway and 90° from keyway. Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch 40
- Number of Teeth 18
- Bore Size 1-3/8″
- Model Number 40BS18H-1-3/8
- Outside Diameter 3.14″
- Hub Diameter 2-5/16″
- Hub Type B (Hub on one side)
- Length Through Bore 1″
- Keyway Size 5/16″ wide x 5/32″ depth
- Shpg. 1.03 lbs.
