Description

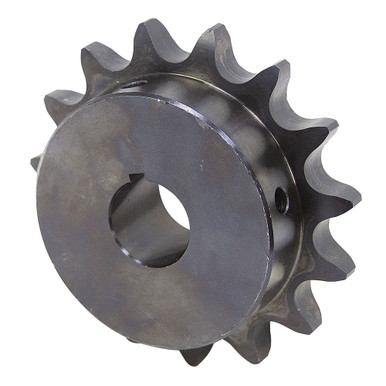

80 PITCH ANSI ROLLER CHAIN SPROCKET
Brand new.ANSI standard 80 pitch roller chain sprocket.Bored to size.One-piece carbon steel forged construction with hardened teeth and black oxide finish.Two set screws.Set screws are located directly over the keyway and 90° from keyway.Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch 80
- Number of Teeth 16
- Bore Size 1-3/8″
- Model Number 80BS16H-1-3/8
- Outside Diameter 5.63″
- Hub Diameter 4′
- Hub Type B (Hub on one side)
- Length Through Bore 1-1/2″
- Keyway Size 5/16″ wide x 5/32″ depth
- Shpg. 6 lbs.
