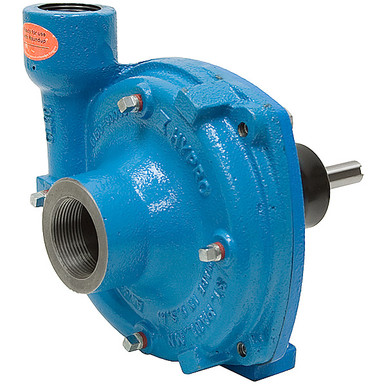

140 GPM Centrifugal Pump Hypro 9203C

140 GPM Centrifugal Pump Hypro 9203C

Original price was: $693.20.Current price is: $138.64.

SKU: 200259 Category:

Description

140 GPM CENTRIFUGAL PUMP
Brand new, HYPRO 9203C cast iron centrifugal pedestal mount pump. Ideal for high volume spraying systems. Viton seals.

Specifications

  • Brand Hypro
  • Model 9203C
  • Speed 6000 RPM max.
  • Inlet Port 1-1/2″ NPT
  • Outlet Port 1-1/4″ NPT
  • Rotation CCW
  • Maximum Temperature 140° F
  • Pedestal Mount 2 bolt on 3″ centers
  • Shaft 5/8″ outside dia. x 2-1/8″ long w/ 3/16″ keyway
  • Size 7.375″ x 7.25″ x 8.25″
  • Shpg. 21 lbs.
Performance
Note: HP shown is for electric motor; double HP for gas engines.
  10 PSI 20 PSI 40 PSI 60 PSI 80 PSI 100 PSI 120 PSI 140 PSI
RPM GPM HP GPM HP GPM HP GPM HP GPM HP GPM HP GPM HP GPM HP
2400 80 1.9 65 1.8 26 1.3
3600 105 5.3 105 5.3 92 5.0 50 3.7
4200 122 8.2 120 7.9 115 7.7 98 7.1 56 5.3
5000 140 12.6 140 12.6 138 12.6 130 12.2 118 11.6 88 9.9 45 7.2
5500 140 14.9 140 14.9 138 14.9 135 15.2 130 15.2 118 14.4 90 12.5 60 9.8
6000 140 17.1 140 17.1 140 17.5 140 18.0 135 18.2 130 18.8 125 18.2 100 16.3
