Description

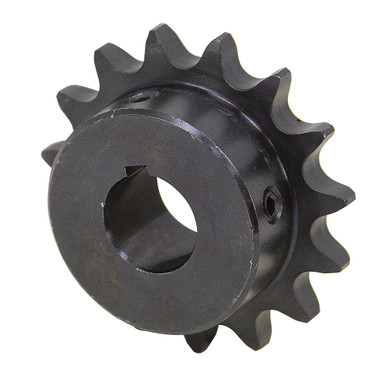

40 PITCH ANSI ROLLER CHAIN SPROCKET
Brand new. ANSI standard 40 pitch roller chain sprocket. Bored to size. One-piece carbon steel forged construction with hardened teeth and black oxide finish. Two set screws. Set screws are located directly over the keyway and 90° from keyway. Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch 40
- Number of Teeth 14
- Bore Size 1-1/8″
- Model Number 40BS14H-1-1/8
- Outside Diameter 2.49″
- Hub Diameter 1-11/16″
- Hub Type B (Hub on one side)
- Length Through Bore 7/8″
- Keyway Size 1/4″ wide x 1/8″ depth
- Shpg. 0.51 lbs.
