Description

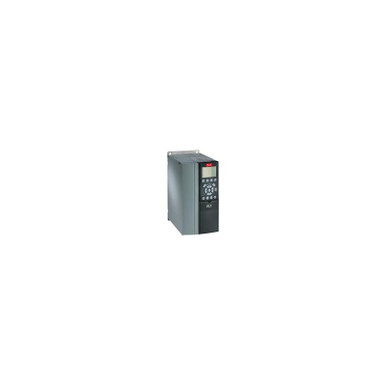

VLT® HVAC Drive FC 102 132 KW / 200 HP, 380 – 480 VAC, No brake chopper, IP20 / Chassis, RFI Class A2 (C3), No A Option, No B Option, Coated PCB, No Mains Option FC-102N132T4E20H2XXCXXXSXXXXAXBXCXXXXDXMore details
Danfoss VLT® HVAC Drive is dedicated to ventilation, heating, and refrigeration applications. With a wide range of powerful standard and optional features, the VLT® HVAC Drive provides the lowest overall cost of ownership. Product Data Typecode: FC-102N132T4E20H2XXCXXXSXXXXAXBXCXXXXDX 132 KW / 200 HP, Three phase, 380 – 480 VAC, No Loc. Cont. Panel, IP20 / Chassis, Frame Size:D3H Please see our Document section for relevant downloads. Contact sales and service
| CHARACTERISTIC | VALUE |
|---|---|
| PRODUCT GROUP | (FC-) VLT® HVAC Drive |
| SERIES | (102) HVAC Advanced version |
| POWER RATING | (N132) 132 KW / 200 HP |
| PHASE | (T) Three phase |
| MAINS VOLTAGE | (4) 380 – 480 VAC |
| ENCLOSURE | (E20) IP20 / Chassis |
| RFI FILTER | (H2) RFI Class A2 (C3) |
| BRAKE – SAFE STOP | (X) No brake chopper |
| LCP | (X) No Loc. Cont. Panel |
| COATING PCB | (C) Coated PCB |
| MAINS OPTION | (X) No Mains Option |
| ADAPTATION A | (X) Standard Cable Entries |
| ADAPTATION B | (X) No adaptation |
| SOFTWARE RELEASE | (SXXX) Latest release std. SW. |
| SOFTWARE LANGUAGE PACK | (X) Standard Language Pack |
| A OPTION | (AX) No A Option |
| B OPTION | (BX) No B Option |
| C0 OPTION MCO | (CX) No C0 option |
| C1 OPTION | (X) No C1 option |
| C OPTION SOFTWARE | (XX) No software option |
| D OPTION | (DX) No D option |
| FRAME SIZE | D3H |
| PRODUCT CATALOG | Global (Standard) |
| TYPECODE | FC-102N132T4E20H2XXC |
| TYPECODE PART 2 | XXXSXXXXAXBXCXXXXDX |
| VENDOR | Factory DK |
| VENDOR REGION | Northern Europe |
| MATERIAL GROSS WEIGHT | 72.000 |
| MATERIAL NET WEIGHT | 67.000 |
