Description

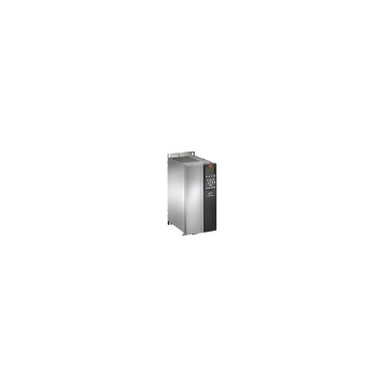

VLT® AQUA Drive FC 200 18.5 KW / 25 HP, 380 – 480 VAC, IP66 / NEMA 4X, RFI Class A2 (C3), No brake chopper FC-202P18KT4E66H2XNXXXXSXXXXA4BXCXXXXDXMore details
| CHARACTERISTIC | VALUE |
|---|---|
| PRODUCT VIEW (SWITCH) | Global (Standard) |
| PRODUCT GROUP | (FC-) VLT® AQUA Drive |
| SERIES | (202) Advanced version |
| POWER RATING | (P18K) 18.5 KW / 25 HP |
| PHASE | (T) Three phase |
| MAINS VOLTAGE | (4) 380 – 480 VAC |
| ENCLOSURE | (E66) IP66 / NEMA 4X |
| RFI FILTER | (H2) RFI Class A2 (C3) |
| BRAKE – SAFE STOP | (X) No brake chopper |
| LCP | (N) Numerical Loc. Cont. Panel |
| COATING PCB | (X) Not coated PCB |
| MAINS OPTION | (X) No Mains Option |
| ADAPTATION A | (X) Standard Cable Entries |
| ADAPTATION B | (X) No adaptation |
| SOFTWARE RELEASE | (SXXX) Latest release std. SW. |
| SOFTWARE LANGUAGE PACK | (X) Standard Language Pack |
| A OPTION | (A4) DeviceNet MCA 104 |
| B OPTION | (BX) No B Option |
| C0 OPTION MCO | (CX) No C0 option |
| C1 OPTION | (X) No C1 option |
| C OPTION SOFTWARE | (XX) No software option |
| D OPTION | (DX) No D option |
| FRAME SIZE | B1 |
| TYPECODE | FC-202P18KT4E66H2XNX |
| TYPECODE PART 2 | XXXSXXXXA4BXCXXXXDX |
| PRODUCT CATALOG | NO VIEW |
| ORIGINAL PRODUCT MATRIX | (STD) Standard Drive |
| VENDOR | Cannot Determine Vendor |
| VENDOR REGION | Cannot Determine Region |
| CALCULATED GROSS WEIGHT | 23,300 |
| CALCULATED NET WEIGHT | 23,000 |
| MATERIAL GROSS WEIGHT | 24,900 |
| MATERIAL NET WEIGHT | 24,600 |
