Description

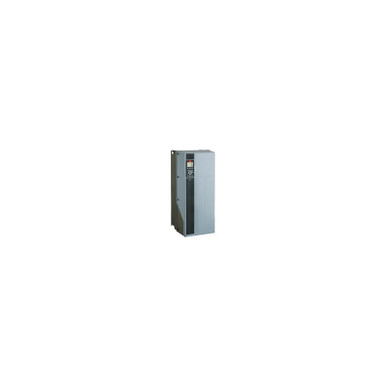

VLT® HVAC Drive FC 102 30 KW / 40 HP, 380 – 480 VAC, No brake chopper, IP55 / Type 12, RFI Class A1/B (cable len)(C1), PROFIBUS DP MCA 101, No B Option, Coated PCB, No Mains Option FC-102P30KT4E55H3XGCXXXSXXXXA0BXCXXXXDXMore details
| CHARACTERISTIC | VALUE |
|---|---|
| PRODUCT VIEW (SWITCH) | Global (Standard) |
| PRODUCT GROUP | (FC-) VLT® HVAC Drive |
| SERIES | (102) HVAC Advanced version |
| POWER RATING | (P30K) 30 KW / 40 HP |
| PHASE | (T) Three phase |
| MAINS VOLTAGE | (4) 380 – 480 VAC |
| ENCLOSURE | (E55) IP55 / Type 12 |
| RFI FILTER | RFI Class A1/B (cable len)(C1) |
| BRAKE – SAFE STOP | (X) No brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| COATING PCB | (C) Coated PCB |
| MAINS OPTION | (X) No Mains Option |
| ADAPTATION A | (X) Standard Cable Entries |
| ADAPTATION B | (X) No adaptation |
| SOFTWARE RELEASE | (SXXX) Latest release std. SW. |
| SOFTWARE LANGUAGE PACK | (X) Standard Language Pack |
| A OPTION | (A0) PROFIBUS DP MCA 101 |
| B OPTION | (BX) No B Option |
| C0 OPTION MCO | (CX) No C0 option |
| C1 OPTION | (X) No C1 option |
| C OPTION SOFTWARE | (XX) No software option |
| D OPTION | (DX) No D option |
| FRAME SIZE | B2 |
| PRODUCT CATALOG | NO VIEW |
| TYPECODE | FC-102P30KT4E55H3XGC |
| TYPECODE PART 2 | XXXSXXXXA0BXCXXXXDX |
| ORIGINAL PRODUCT MATRIX | (STD) Standard Drive |
| VENDOR | Cannot Determine Vendor |
| VENDOR REGION | Cannot Determine Region |
| CALCULATED GROSS WEIGHT | 27,300 |
| CALCULATED NET WEIGHT | 27,000 |
| MATERIAL GROSS WEIGHT | 32,100 |
| MATERIAL NET WEIGHT | 28,000 |
