Description

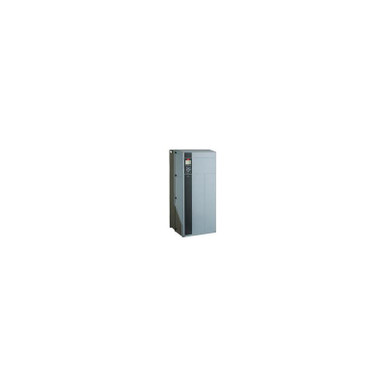

VLT® AutomationDrive FC 300 15 KW / 20 HP, 200 – 240 VAC, IP20 / Chassis, RFI Class A1/B (C1), No brake chopper Further options according to typecodeMore details
| CHARACTERISTIC | VALUE |
|---|---|
| PRODUCT VIEW (SWITCH) | Global (Standard) |
| PRODUCT GROUP | (FC-) VLT® AutomationDrive |
| SERIES | (302) AutomationDrive Advanced |
| POWER RATING | (P15K) 15 KW / 20 HP |
| PHASE | (T) Three phase |
| MAINS VOLTAGE | (2) 200 – 240 VAC |
| ENCLOSURE | (E20) IP20 / Chassis |
| RFI FILTER | (H1) RFI Class A1/B (C1) |
| BRAKE – SAFE STOP | (X) No brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| COATING PCB | (X) Not coated PCB |
| MAINS OPTION | (X) No Mains Option |
| ADAPTATION A | (X) Standard Cable Entries |
| ADAPTATION B | (X) No adaptation |
| SOFTWARE RELEASE | (SXXX) Latest release std. SW. |
| SOFTWARE LANGUAGE PACK | (X) Standard Language Pack |
| A OPTION | (AX) No A Option |
| B OPTION | (BX) No B Option |
| C0 OPTION MCO | (CX) No C0 option |
| C1 OPTION | (X) No C1 option |
| C OPTION SOFTWARE | (XX) No software option |
| D OPTION | (DX) No D option |
| FRAME SIZE | B4 |
| TYPECODE | FC-302P15KT2E20H1XGX |
| TYPECODE PART 2 | XXXSXXXXAXBXCXXXXDX |
| PRODUCT CATALOG | NO VIEW |
| ORIGINAL PRODUCT MATRIX | (STD) Standard Drive |
| VENDOR | Cannot Determine Vendor |
| VENDOR REGION | Cannot Determine Region |
| CALCULATED GROSS WEIGHT | 23,300 |
| CALCULATED NET WEIGHT | 23,000 |
| MATERIAL GROSS WEIGHT | 23,267 |
| MATERIAL NET WEIGHT | 23,000 |
