Description

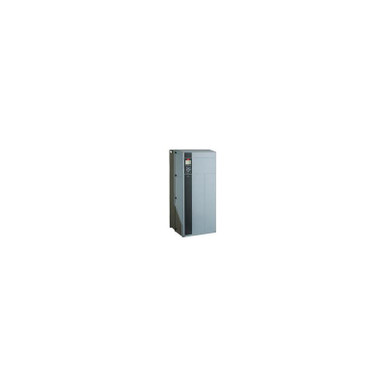

VLT® AutomationDrive FC 300 55 KW / 75 HP, 380 – 500 VAC, IP20 / Chassis, RFI Class A2 (C3), No brake chopper Further options according to typecodeMore details
| CHARACTERISTIC | VALUE |
|---|---|
| PRODUCT VIEW (SWITCH) | Global (Standard) |
| PRODUCT GROUP | (FC-) VLT® AutomationDrive |
| SERIES | (302) AutomationDrive Advanced |
| POWER RATING | (P55K) 55 KW / 75 HP |
| PHASE | (T) Three phase |
| MAINS VOLTAGE | (5) 380 – 500 VAC |
| ENCLOSURE | (E20) IP20 / Chassis |
| RFI FILTER | (H2) RFI Class A2 (C3) |
| BRAKE – SAFE STOP | (X) No brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| COATING PCB | (X) Not coated PCB |
| MAINS OPTION | (D) Loadsharing |
| ADAPTATION A | (X) Standard Cable Entries |
| ADAPTATION B | (X) No adaptation |
| SOFTWARE RELEASE | (SXXX) Latest release std. SW. |
| SOFTWARE LANGUAGE PACK | (X) Standard Language Pack |
| A OPTION | (A0) PROFIBUS DP MCA 101 |
| B OPTION | (B2) MCB-112 PTC Therm. Card |
| C0 OPTION MCO | (CX) No C0 option |
| C1 OPTION | (X) No C1 option |
| C OPTION SOFTWARE | (XX) No software option |
| D OPTION | (D0) 24V DC backup |
| FRAME SIZE | C4 |
| TYPECODE | FC-302P55KT5E20H2XGX |
| TYPECODE PART 2 | DXXSXXXXA0B2CXXXXD0 |
| PRODUCT CATALOG | NO VIEW |
| ORIGINAL PRODUCT MATRIX | (STD) Standard Drive |
| VENDOR | Cannot Determine Vendor |
| VENDOR REGION | Cannot Determine Region |
| CALCULATED GROSS WEIGHT | 50,500 |
| CALCULATED NET WEIGHT | 50,200 |
| MATERIAL GROSS WEIGHT | 49,100 |
| MATERIAL NET WEIGHT | 48,800 |
