Description

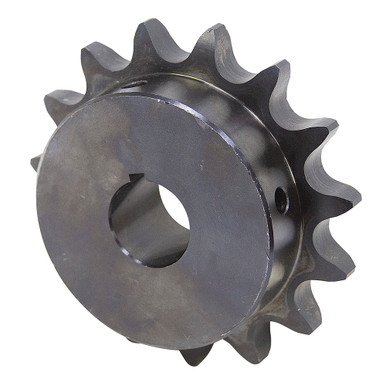

80 PITCH ANSI ROLLER CHAIN SPROCKET
Brand new. ANSI standard 80 pitch roller chain sprocket. Bored to size. One-piece carbon steel forged construction with hardened teeth and black oxide finish. Two set screws. Set screws are located directly over the keyway and 90° from keyway. Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch 80
- Number of Teeth 13
- Bore Size 1-3/4″
- Model Number 80BS13H-1-3/4
- Outside Diameter 4.66″
- Hub Diameter 3″
- Hub Type B (Hub on one side)
- Length Through Bore 1-1/2″
- Keyway Size 3/8″ wide x 3/16″ depth
- Shpg. 4 lbs.
