Description

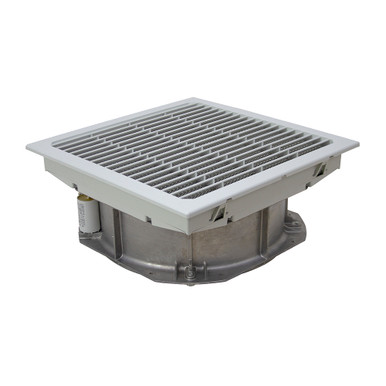

13″ GRILL 526 CFM 230 VAC FILTER FAN
New, Pentair fresh air enclosure filter fan model SF1326534. High airflow and low noise for cooling electrical equipment or general air circulation. Grey plastic grill. Air is pulled through the plastic grill and filter. Metal housing and fan blades. Click-fit design installs into enclosure wall. Snap over grill with foam filter. 69db rating. Terminal block electrical connection.
SPECIFICATIONS
- Push Type Fan
- Model Number SF1326534
- Flow 526 CFM max.
- Voltage 230 AC
- Amperage 0.92 Amps
- Power 215 Watts
- Speed 2950 RPM
- Operating Temperature Range Min. 5° F to Max. 140° F
- IP Rating 55
- Mount 8 holes on 5-15/16″ to 11-7/8″ x 5-15/16″ to 11-7/8″ centers
- Cutout Dimensions 11.5″ x 11.5″
- Blade Dia. 7-1/8″
- Number of Blades 7
- Size 12-3/4″ x 12-3/4″ x 5-1/2″
- Shpg. 15 lbs.
