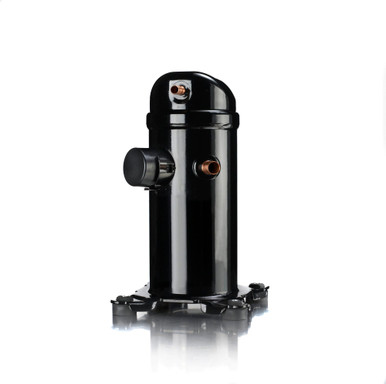

121U9018 Danfoss Scroll compressor, HHP030T4LC6

121U9018 Danfoss Scroll compressor, HHP030T4LC6

Original price was: $2,224.50.Current price is: $444.90.

SKU: 121U9018 Category: Tag:

Description

Product details

Gross weight 41.67 kg
Net weight 37.67 kg
EAN 5702428378772
Gross weight 41.67 kg
Net weight 37.67 kg
EAN 5702428378772



Approval standard CE
UL
Brand technique Scroll compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V/Ph/Hz] 400/3/50 460/3/60
Configuration code Single
Connection type Brazed
HHP030T4
Diameter [mm] 184 mm
Discharge connection height [mm] 422 mm
Discharge connection pipe size [in] 1/2 in
Discharge connection size [in] 1/2 in
Drawing number 0XR6089B-1
Economizer No
Fitting standard ODF
Frequency [Hz] 50
Gauge port HP None
Gauge port LP None
Gaz equalization None
Glass mounting None
High value of nominal voltage at 50Hz [V] 415 V
High value of voltage range at 50Hz [V] 456 V
IP protection class IP22
Length [mm] 239 mm
Low value of nominal voltage at 50Hz [V] 380 V
Low value of voltage range at 50Hz [V] 342 V
LRA 60 A
MCC 13 A
Model number HHP030T4LC6
Motor protection Internal overload protector
Number of starts per hour [Max] 12
Oil charge [L] 1.57 L
Oil equalization None
Oil reference 160HV
Oil type PVE
Packing format Single pack/pallet
Packing quantity 6
Phase 3
Power connections Screw connectors 10-32 UNF x 9.5
Refrigerant R407C
Refrigerant charge [kg] [Max] 5.4 kg
Relief valve Yes
Rotational speed at 50Hz [rpm] 2900 rpm
Segment usage Heating
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets and sleeves
Shipped oil Initial oil charge
Suction connection height [mm] 280 mm
Suction connection pipe size [in] 7/8 in
Suction connection size [in] 7/8 in
Swept volume [cm3] 67 cm3
Technology Scroll
Torque earth [Nm] 2 N-m
Torque power [Nm] 3 N-m
Total height [mm] 455 mm
Type HHP
Type designation Compressor
Viscosity [cP] 32 cP
Width [mm] 239 mm
Winding resistance 1-2 [Ohm] 2.6 Ohm
Winding resistance 1-3 [Ohm] 2.61 Ohm
Winding resistance 2-3 [Ohm] 2.65 Ohm
Winding resistance for three-phase compressors with identical windings [Ohm] 2.63 Ohm
Approval standard CE
UL
Brand technique Scroll compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V/Ph/Hz] 400/3/50 460/3/60
Configuration code Single
Connection type Brazed
HHP030T4
Diameter [mm] 184 mm
Discharge connection height [mm] 422 mm
Discharge connection pipe size [in] 1/2 in
Discharge connection size [in] 1/2 in
Drawing number 0XR6089B-1
Economizer No
Fitting standard ODF
Frequency [Hz] 50
Gauge port HP None
Gauge port LP None
Gaz equalization None
Glass mounting None
High value of nominal voltage at 50Hz [V] 415 V
High value of voltage range at 50Hz [V] 456 V
IP protection class IP22
Length [mm] 239 mm
Low value of nominal voltage at 50Hz [V] 380 V
Low value of voltage range at 50Hz [V] 342 V
LRA 60 A
MCC 13 A
Model number HHP030T4LC6
Motor protection Internal overload protector
Number of starts per hour [Max] 12
Oil charge [L] 1.57 L
Oil equalization None
Oil reference 160HV
Oil type PVE
Packing format Single pack/pallet
Packing quantity 6
Phase 3
Power connections Screw connectors 10-32 UNF x 9.5
Refrigerant R407C
Refrigerant charge [kg] [Max] 5.4 kg
Relief valve Yes
Rotational speed at 50Hz [rpm] 2900 rpm
Segment usage Heating
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets and sleeves
Shipped oil Initial oil charge
Suction connection height [mm] 280 mm
Suction connection pipe size [in] 7/8 in
Suction connection size [in] 7/8 in
Swept volume [cm3] 67 cm3
Technology Scroll
Torque earth [Nm] 2 N-m
Torque power [Nm] 3 N-m
Total height [mm] 455 mm
Type HHP
Type designation Compressor
Viscosity [cP] 32 cP
Width [mm] 239 mm
Winding resistance 1-2 [Ohm] 2.6 Ohm
Winding resistance 1-3 [Ohm] 2.61 Ohm
Winding resistance 2-3 [Ohm] 2.65 Ohm
Winding resistance for three-phase compressors with identical windings [Ohm] 2.63 Ohm

Refrigerant: R407C, Segment usage: Heating, Compressor power supply [V/Ph/Hz]: 400/3/50 460/3/60

Product details

Gross weight 41.67 kg
Net weight 37.67 kg
EAN 5702428378772
Gross weight 41.67 kg
Net weight 37.67 kg
EAN 5702428378772



Approval standard CE
UL
Brand technique Scroll compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V/Ph/Hz] 400/3/50 460/3/60
Configuration code Single
Connection type Brazed
HHP030T4
Diameter [mm] 184 mm
Discharge connection height [mm] 422 mm
Discharge connection pipe size [in] 1/2 in
Discharge connection size [in] 1/2 in
Drawing number 0XR6089B-1
Economizer No
Fitting standard ODF
Frequency [Hz] 50
Gauge port HP None
Gauge port LP None
Gaz equalization None
Glass mounting None
High value of nominal voltage at 50Hz [V] 415 V
High value of voltage range at 50Hz [V] 456 V
IP protection class IP22
Length [mm] 239 mm
Low value of nominal voltage at 50Hz [V] 380 V
Low value of voltage range at 50Hz [V] 342 V
LRA 60 A
MCC 13 A
Model number HHP030T4LC6
Motor protection Internal overload protector
Number of starts per hour [Max] 12
Oil charge [L] 1.57 L
Oil equalization None
Oil reference 160HV
Oil type PVE
Packing format Single pack/pallet
Packing quantity 6
Phase 3
Power connections Screw connectors 10-32 UNF x 9.5
Refrigerant R407C
Refrigerant charge [kg] [Max] 5.4 kg
Relief valve Yes
Rotational speed at 50Hz [rpm] 2900 rpm
Segment usage Heating
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets and sleeves
Shipped oil Initial oil charge
Suction connection height [mm] 280 mm
Suction connection pipe size [in] 7/8 in
Suction connection size [in] 7/8 in
Swept volume [cm3] 67 cm3
Technology Scroll
Torque earth [Nm] 2 N-m
Torque power [Nm] 3 N-m
Total height [mm] 455 mm
Type HHP
Type designation Compressor
Viscosity [cP] 32 cP
Width [mm] 239 mm
Winding resistance 1-2 [Ohm] 2.6 Ohm
Winding resistance 1-3 [Ohm] 2.61 Ohm
Winding resistance 2-3 [Ohm] 2.65 Ohm
Winding resistance for three-phase compressors with identical windings [Ohm] 2.63 Ohm
Approval standard CE
UL
Brand technique Scroll compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V/Ph/Hz] 400/3/50 460/3/60
Configuration code Single
Connection type Brazed
HHP030T4
Diameter [mm] 184 mm
Discharge connection height [mm] 422 mm
Discharge connection pipe size [in] 1/2 in
Discharge connection size [in] 1/2 in
Drawing number 0XR6089B-1
Economizer No
Fitting standard ODF
Frequency [Hz] 50
Gauge port HP None
Gauge port LP None
Gaz equalization None
Glass mounting None
High value of nominal voltage at 50Hz [V] 415 V
High value of voltage range at 50Hz [V] 456 V
IP protection class IP22
Length [mm] 239 mm
Low value of nominal voltage at 50Hz [V] 380 V
Low value of voltage range at 50Hz [V] 342 V
LRA 60 A
MCC 13 A
Model number HHP030T4LC6
Motor protection Internal overload protector
Number of starts per hour [Max] 12
Oil charge [L] 1.57 L
Oil equalization None
Oil reference 160HV
Oil type PVE
Packing format Single pack/pallet
Packing quantity 6
Phase 3
Power connections Screw connectors 10-32 UNF x 9.5
Refrigerant R407C
Refrigerant charge [kg] [Max] 5.4 kg
Relief valve Yes
Rotational speed at 50Hz [rpm] 2900 rpm
Segment usage Heating
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets and sleeves
Shipped oil Initial oil charge
Suction connection height [mm] 280 mm
Suction connection pipe size [in] 7/8 in
Suction connection size [in] 7/8 in
Swept volume [cm3] 67 cm3
Technology Scroll
Torque earth [Nm] 2 N-m
Torque power [Nm] 3 N-m
Total height [mm] 455 mm
Type HHP
Type designation Compressor
Viscosity [cP] 32 cP
Width [mm] 239 mm
Winding resistance 1-2 [Ohm] 2.6 Ohm
Winding resistance 1-3 [Ohm] 2.61 Ohm
Winding resistance 2-3 [Ohm] 2.65 Ohm
Winding resistance for three-phase compressors with identical windings [Ohm] 2.63 Ohm
