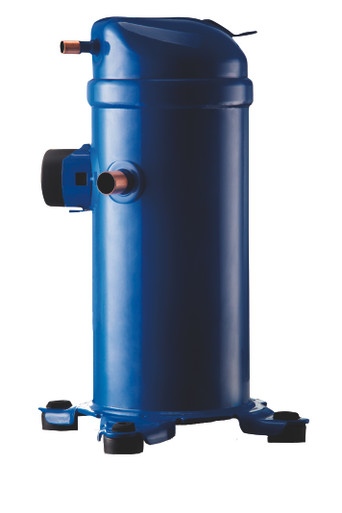

121L9521 Danfoss Scroll compressor, LLZ034T4LQ9

121L9521 Danfoss Scroll compressor, LLZ034T4LQ9

Original price was: $6,263.31.Current price is: $626.33.

SKU: 121L9521 Category: Tag:

Description

Product details

Gross weight 54.33 kg
Net weight 52.67 kg
Gross weight 54.33 kg
Net weight 52.67 kg



Approval standard CE
UL
Brand technique Scroll compressor
Capacity control Fixed speed
Colour Blue
Compressor power supply [V/Ph/Hz] 400/3/50 460/3/60
Configuration code Single
Connection type Rotolock
LLZ034T4
Diameter [mm] 184 mm
Discharge connection height [mm] 538 mm
Discharge connection mounting torque [Nm] 90 N-m
Discharge connection rotolock size [in] 1 1/4 in
Discharge connection size [in] 1 1/4 in
Drawing number 0SR7510B-3
Economiser connection size [in] 1 in
Economizer Yes
Fitting remark Rotolock connection kit for suction, economiser and discharge fittings with seals, nuts and sleeves.
Fitting standard Rotolock
Frequency [Hz] 50/60
Gauge port HP None
Gauge port LP None
Glass mounting Threaded
Glass torque [Nm] 53 N-m
Height economiser [mm] 446.7 mm
High value of nominal voltage at 50Hz [V] 415 V
High value of nominal voltage at 60Hz [V] 460 V
High value of voltage range at 50Hz [V] 457 V
High value of voltage range at 60Hz [V] 506 V
IP protection class IP22
Length [mm] 232 mm
Liquid injection Yes
Liquid injection valve Sporlan Y1037-1/2-230-3/8ODFX3/8ODF
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 460 V
Low value of voltage range at 50Hz [V] 340 V
Low value of voltage range at 60Hz [V] 414 V
LRA 150 A
MCC 26 A
Model number LLZ034T4LQ9
Motor protection Internal overload protector
Number of starts per hour [Max] 12
Oil charge [L] 2.51 L
Oil equalization None
Oil reference 160HV
Oil type PVE
Packing format Single pack
Packing quantity 1
Phase 3
Power connections Screw connectors 10-32 UNF x 9.5
Refrigerant R404A
R507
Refrigerant charge [kg] [Max] 7.26 kg
Relief valve None
RLA 16.7 A
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Refrigeration LT
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets and sleeves
Shipped oil Initial oil charge
Suction connection height [mm] 374 mm
Suction connection mounting torque [Nm] 110 N-m
Suction connection rotolock size [in] 1 3/4 in
Suction connection size [in] 1 3/4 in
Swept volume [cm3] 168.7 cm3
Technology Scroll
Torque earth [Nm] 2 N-m
Torque power [Nm] 3 N-m
Total height [mm] 565 mm
Type LLZ
Type designation Compressor
Viscosity [cP] 32 cP
Width [mm] 232 mm
Approval standard CE
UL
Brand technique Scroll compressor
Capacity control Fixed speed
Colour Blue
Compressor power supply [V/Ph/Hz] 400/3/50 460/3/60
Configuration code Single
Connection type Rotolock
LLZ034T4
Diameter [mm] 184 mm
Discharge connection height [mm] 538 mm
Discharge connection mounting torque [Nm] 90 N-m
Discharge connection rotolock size [in] 1 1/4 in
Discharge connection size [in] 1 1/4 in
Drawing number 0SR7510B-3
Economiser connection size [in] 1 in
Economizer Yes
Fitting remark Rotolock connection kit for suction, economiser and discharge fittings with seals, nuts and sleeves.
Fitting standard Rotolock
Frequency [Hz] 50/60
Gauge port HP None
Gauge port LP None
Glass mounting Threaded
Glass torque [Nm] 53 N-m
Height economiser [mm] 446.7 mm
High value of nominal voltage at 50Hz [V] 415 V
High value of nominal voltage at 60Hz [V] 460 V
High value of voltage range at 50Hz [V] 457 V
High value of voltage range at 60Hz [V] 506 V
IP protection class IP22
Length [mm] 232 mm
Liquid injection Yes
Liquid injection valve Sporlan Y1037-1/2-230-3/8ODFX3/8ODF
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 460 V
Low value of voltage range at 50Hz [V] 340 V
Low value of voltage range at 60Hz [V] 414 V
LRA 150 A
MCC 26 A
Model number LLZ034T4LQ9
Motor protection Internal overload protector
Number of starts per hour [Max] 12
Oil charge [L] 2.51 L
Oil equalization None
Oil reference 160HV
Oil type PVE
Packing format Single pack
Packing quantity 1
Phase 3
Power connections Screw connectors 10-32 UNF x 9.5
Refrigerant R404A
R507
Refrigerant charge [kg] [Max] 7.26 kg
Relief valve None
RLA 16.7 A
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Refrigeration LT
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets and sleeves
Shipped oil Initial oil charge
Suction connection height [mm] 374 mm
Suction connection mounting torque [Nm] 110 N-m
Suction connection rotolock size [in] 1 3/4 in
Suction connection size [in] 1 3/4 in
Swept volume [cm3] 168.7 cm3
Technology Scroll
Torque earth [Nm] 2 N-m
Torque power [Nm] 3 N-m
Total height [mm] 565 mm
Type LLZ
Type designation Compressor
Viscosity [cP] 32 cP
Width [mm] 232 mm

Refrigerant: R404A; R507, Segment usage: Refrigeration LT, Compressor power supply [V/Ph/Hz]: 400/3/50 460/3/60
