Description
120 VOLT AC HYDRAULIC SOLENOID VALVE

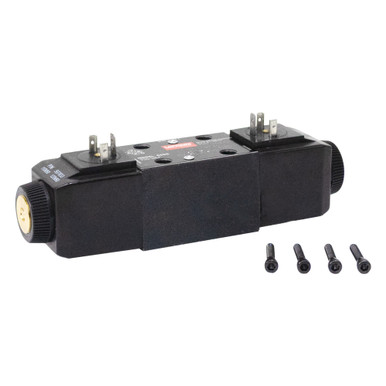

Brand new, Eaton-Vickers DG4V-3 series, double-solenoid control valve. Spring centering spool. Manual override on solenoids. Valve ships with four cap-screws (10-24) for mounting. Subplate mounting requires D03 subplate (Sold Separately) for port connections. Use with two DIN 43650 or Hirschmann connectors Surplus Center Item Number 500318 (Sold Separately) for wiring.
SPECIFICATIONS
- Brand Eaton-Vickers
- Model Number DG4V-3-2C-VM-U-B6-60
- Closed center spool (Work ports blocked in neutral))
- ISO 4401-3 (10-24)
- Voltage
110 Volts AC @ 50 Hz
120 Volts AC @ 60 Hz
- Amperage 0.35 Amps
- Flow Rate 10.5 GPM max
- Pressure 3,000 PSI max
- Subplate Mounting Type D03
- Size 7.87″ x 2.1″ x 1.88″
- Shpg. 5 lbs.
Hirschmann Connector
| DIN 43650 Hirschmann Connector TSII PG 9 |
500318 |
Compatible Manifolds
| 1 Station D03 Series or Parallel Circuit Manifold Subplate for Open and Closed Center Valve w/ SAE 8 Side Ports Source Fluid Power SFP27131 |
906313 |
| 1 Station D03 Series or Parallel Circuit Manifold Subplate for Open and Closed Center Valve w/ SAE 6 Dual Ports Source Fluid Power SFP10103 |
906314 |
| 1 Station D03 Series or Parallel Circuit Manifold Subplate for Open and Closed Center Valve w/ SAE 6 Side Ports Source Fluid Power SFP10101 |
900622 |
| 2 Station D03 Parallel Closed Center Manifold Subplate Source Fluid Power SFP-10002 |
900623 |
| 3 Station D03 Parallel Closed Center Manifold Subplate Source Fluid Power SFP-10003 |
900624 |
| 4 Station D03 Parallel Closed Center Manifold Subplate Source Fluid Power SFP10004 |
903090 |
Replacement Screw for Mounting Solenoid Valve to Manifold
| 10-24 x 1.25″ Grade 8 Socket Cap Screw |
903986 |
