Description

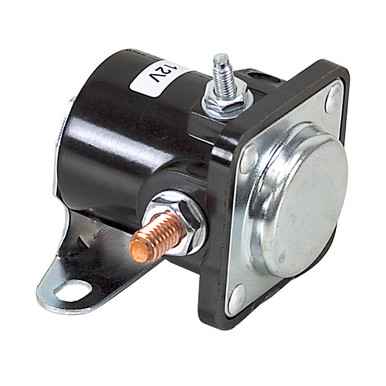

12 VDC INTERMITTENT DUTY SOLENOID
Brand new, ARROWHEAD part number SFD6004 solenoid. Three terminals, plastic housing. Copper contact material.Grounded through case.Apply 12 volts DC positive (+) to the small terminal to activate.
SPECIFICATIONS
- Voltage 12 DC
- Current Rating 100 Amps @ 12 VDC
- Current Inrush 750 Amps
- Duty Intermittent
- Main Terminals 5/16″-24
- Center Terminal 10-32
- Mounting 7.1mm x 9.9mm mounting slots on 53.6mm centers
- Size 2-1/4″ x 2-1/8″ x 2-1/8″
- Shpg. 1-1/2 lbs.
