Description

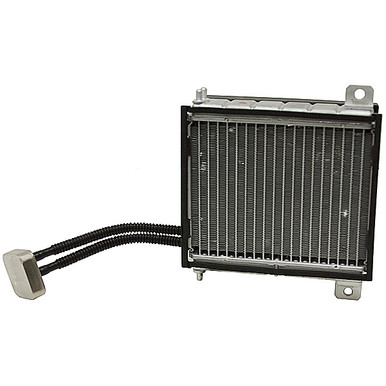

12 VDC LIQUID COOLING SYSTEM
New, SANYO DENKI SAN ACE MC model 109-LC1-003 CPU-cooler. Liquid cooling system built for removing heat from high performance computer CPU”s. Consists of an aluminum, fan-cooled radiator, a small coolant pump and a copper cold plate. Mount the cold plate to a warm surface to remove heat from the surface. Clip for attaching to Intel LGA 775 Socket included.Fan speed can be controlled based on temperature. The unit is designed to install in a computer case with proprietary mounts and a support beam intended solely for the Sanyo Denki San Ace MC; some modding by the user to the host chassis is to be expected.
SPECIFICATIONS
- Voltage 12 DC
- Amperage
Fan 0.30 Amps
Pump 0.13 Amps - Radiator Area 6-3/8″ x 4-5/8″
- Thermal Resistance 0.22 K/W @ max Fan RPM
- Liquid Coolant Propylene Glycol solution
- Two Bolt Mount 183 mm (7.20″) centers
- Overall Size 3-1/8″ x 7″ x 7-7/8″
- Cold-Plate Size 43x55x15 mm (1.69″ x 2.17″ x 0.59″)
- Shpg. 5 lbs.
