Description

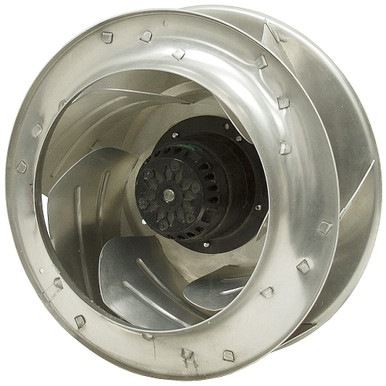

230 VAC MOTORIZED IMPELLOR
New FANS-TECH ELECTRIC model FH320.Backward curved motorized impellor.Use for cabinet cooling, air filtration systems.Air is discharged in 360 degree pattern around impellor.Narrow profile and vertical or horizontal mount to save space. Steel construction. Quiet operation with high airflow. Requires 4 mfd 450 VAC run capacitor, not included.
SPECIFICATIONS
- Flow 1175 CFM max
- Voltage230 VAC
- Current0.75 Amps
- Speed 1580 RPM
- Mounting Flange Four tapped holes on motor
- Inlet8-1/2″ dia.
- Outlet360 degrees around perimeter
- Size12-1/2″ dia. x 6″
- Shpg.14 lbs.
