Description
Product details
| Gross weight | 91 kg |
| Net weight | 70 kg |
| EAN | 5702428560887 |
| Gross weight | 91 kg |
| Net weight | 70 kg |
| EAN | 5702428560887 |
| Air flow @ 50Hz [m³/h] | 3 m3/h |
| Applications | MBP |
| Approval standard | CE EAC |
| Compressor model | MLZ019T4 |
| Compressor power supply [V/Ph/Hz] | 400/3/50 |
| Condenser type | D7 |
| OP-MSXM044MLW09E | |
| Electrical code | E |
| Fan blade size [mm] | 450 mm |
| Fan cowl/grill type | B2 |
| Fan current @ 50Hz [A] | 0.47 A |
| Fan diameter [mm] | 450 mm |
| Fan power consumption @ 50Hz [W] | 110 W |
| Fan power output @ 50Hz [W] | 68 W |
| Fan power supply [V/Ph/Hz] | 230/1/60 |
| Fan voltage @ 50Hz (max) [V] [Max] | 230 V |
| Fan voltage @ 50Hz (max) [V] [Min] | 230 V |
| Length [mm] | 464 mm |
| Liquid line connection [in] | 1/2 in |
| Liquid line connection type | Solder |
| MCC | 9.5 A |
| Model number | OP-MSXM044MLW09E |
| No. of phases (compressor) | 3 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Receiver approval | CE |
| Receiver volume [L] | 3.4 L |
| Refrigerant | R134a R404A R407A R407F R448A R449A R452A R507 R513A |
| Segment usage | Medium Back Pressure |
| Sound power @ 50Hz [db(A)] | 69 dBA |
| Sound pressure level 50Hz (@10 m distance) [db(A)] | 38 dBA |
| Suction connection type | Solder |
| Technology | Scroll |
| Total height [mm] | 690 mm |
| Type | Optyma™ Slim Pack |
| Type designation | Condensing Units |
| Version | W09 |
| Voltage 50Hz [V] | 380 V |
| Voltage 50Hz [V] [Max] | 415 V |
| Width [mm] | 1087 mm |
| Air flow @ 50Hz [m³/h] | 3 m3/h |
| Applications | MBP |
| Approval standard | CE EAC |
| Compressor model | MLZ019T4 |
| Compressor power supply [V/Ph/Hz] | 400/3/50 |
| Condenser type | D7 |
| OP-MSXM044MLW09E | |
| Electrical code | E |
| Fan blade size [mm] | 450 mm |
| Fan cowl/grill type | B2 |
| Fan current @ 50Hz [A] | 0.47 A |
| Fan diameter [mm] | 450 mm |
| Fan power consumption @ 50Hz [W] | 110 W |
| Fan power output @ 50Hz [W] | 68 W |
| Fan power supply [V/Ph/Hz] | 230/1/60 |
| Fan voltage @ 50Hz (max) [V] [Max] | 230 V |
| Fan voltage @ 50Hz (max) [V] [Min] | 230 V |
| Length [mm] | 464 mm |
| Liquid line connection [in] | 1/2 in |
| Liquid line connection type | Solder |
| MCC | 9.5 A |
| Model number | OP-MSXM044MLW09E |
| No. of phases (compressor) | 3 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Receiver approval | CE |
| Receiver volume [L] | 3.4 L |
| Refrigerant | R134a R404A R407A R407F R448A R449A R452A R507 R513A |
| Segment usage | Medium Back Pressure |
| Sound power @ 50Hz [db(A)] | 69 dBA |
| Sound pressure level 50Hz (@10 m distance) [db(A)] | 38 dBA |
| Suction connection type | Solder |
| Technology | Scroll |
| Total height [mm] | 690 mm |
| Type | Optyma™ Slim Pack |
| Type designation | Condensing Units |
| Version | W09 |
| Voltage 50Hz [V] | 380 V |
| Voltage 50Hz [V] [Max] | 415 V |
| Width [mm] | 1087 mm |

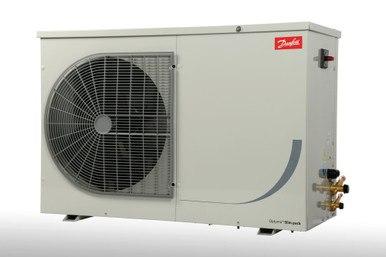

Type designation: Condensing Units, Type: Optyma™ Slim Pack, Model number: OP-MSXM044MLW09E, Refrigerant: R134a; R404A; R407A; R407F; R448A; R449A; R452A; R507; R513A, Segment usage: Medium Back Pressure, No. of phases (compressor): 3
