Description
Product details
| Gross weight |
52.5 kg |
| Net weight |
52 kg |
| Gross weight |
52.5 kg |
| Net weight |
52 kg |
| EAN |
5702428560931 |
| Air flow @ 50Hz [m³/h] |
2200 m3/h |
| Applications |
MBP |
| Approval standard |
CE
EAC |
| Compressor model |
SC12G |
| Compressor power supply [V/Ph/Hz] |
230/1/50 230/1/60 |
| Condenser type |
A7 |
|
OP-MSGM012SCW09G |
| Electrical code |
G |
| Fan blade size [mm] |
365 mm |
| Fan cowl/grill type |
Grill H1 |
| Fan current @ 50Hz [A] |
0.24 A |
| Fan diameter [mm] |
365 mm |
| Fan power consumption @ 50Hz [W] |
60 W |
| Fan power output @ 50Hz [W] |
25 W |
| Fan power supply [V/Ph/Hz] |
230/1/50 |
| Length [mm] |
364 mm |
| Liquid line connection [in] |
3/8 in |
| Liquid line connection type |
Solder |
| MCC |
3.17 A |
| Model number |
OP-MSGM012SCW09G |
| No. of phases (compressor) |
1 |
| No. of phases (fan) |
1 |
| Number of fans |
1 |
| Receiver approval |
CE |
| Receiver volume [L] |
1.3 L |
| Refrigerant |
R134a
R513A |
| Segment usage |
Medium Back Pressure |
| Suction connection type |
Solder |
| Technology |
Reciprocating |
| Total height [mm] |
530 mm |
| Type |
Optyma™ Slim Pack |
| Type designation |
Condensing Units |
| Version |
W09 |
| Voltage 50Hz [V] |
230 V |
| Voltage 50Hz [V] [Max] |
254 V |
| Width [mm] |
910 mm |
| Air flow @ 50Hz [m³/h] |
2200 m3/h |
| Applications |
MBP |
| Approval standard |
CE
EAC |
| Compressor model |
SC12G |
| Compressor power supply [V/Ph/Hz] |
230/1/50 230/1/60 |
| Condenser type |
A7 |
|
OP-MSGM012SCW09G |
| Electrical code |
G |
| Fan blade size [mm] |
365 mm |
| Fan cowl/grill type |
Grill H1 |
| Fan current @ 50Hz [A] |
0.24 A |
| Fan diameter [mm] |
365 mm |
| Fan power consumption @ 50Hz [W] |
60 W |
| Fan power output @ 50Hz [W] |
25 W |
| Fan power supply [V/Ph/Hz] |
230/1/50 |
| Length [mm] |
364 mm |
| Liquid line connection [in] |
3/8 in |
| Liquid line connection type |
Solder |
| MCC |
3.17 A |
| Model number |
OP-MSGM012SCW09G |
| No. of phases (compressor) |
1 |
| No. of phases (fan) |
1 |
| Number of fans |
1 |
| Receiver approval |
CE |
| Receiver volume [L] |
1.3 L |
| Refrigerant |
R134a
R513A |
| Segment usage |
Medium Back Pressure |
| Suction connection type |
Solder |
| Technology |
Reciprocating |
| Total height [mm] |
530 mm |
| Type |
Optyma™ Slim Pack |
| Type designation |
Condensing Units |
| Version |
W09 |
| Voltage 50Hz [V] |
230 V |
| Voltage 50Hz [V] [Max] |
254 V |
| Width [mm] |
910 mm |

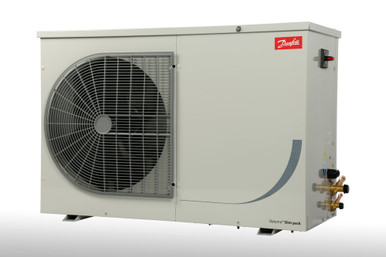

Type designation: Condensing Units, Type: Optyma™ Slim Pack, Model number: OP-MSGM012SCW09G, Refrigerant: R134a; R513A, Segment usage: Medium Back Pressure, No. of phases (compressor): 1
