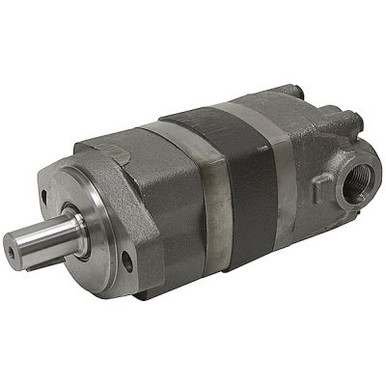

11.9 cu in Char-Lynn 104-1041 Hydraulic Motor

Description

11.9 cu in CHAR-LYNN 104-1041 HYD MOTOR
Brand new CHAR-LYNN 2000 series hydraulic motors.Geroler power element.Tapered roller bearings on output shaft for high axial and radial load capacity.Interchangeable with the following motor lines:Dynamic BMS, Danfoss OMS/OMSS, White RE/DH, Parker/Ross MB/TF.

SPECIFICATIONS

• Disp. 11.9 cu. in. / rev.
• Motor Type Geroler
• Pressure:
    3000 PSI cont.
    3750 PSI int.
• Torque:
    4780in-lbs. cont.
    5890in-lbs. int.
• Speed:
    385RPM cont.
    577RPM int.
• Flow:
    20GPM cont.
    30GPM int.
• Rotation Reversible
• Mount 2 bolt SAE A
• Shaft 1″ dia. x 2″ keyed
• Ports SAE 12
• Case Drain SAE 4
• Size8″ x 5-1/8″ x 4-1/4″
• Shpg.28 lbs.
