Description

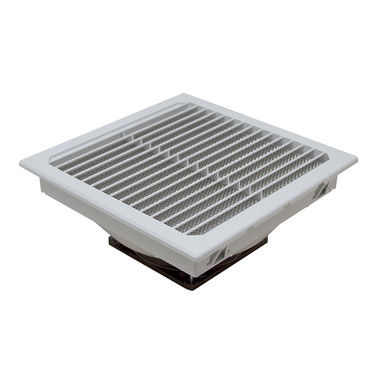

10″ GRILL 92 CFM 230 VAC FILTER FAN
New, Pentair fresh air enclosure filter fan model ST1026514. High airflow and low noise for cooling electrical equipment or general air circulation. Grey plastic grill. Air is pulled through the plastic grill and filter. Metal housing with plastic blades. Click-fit design installs into enclosure wall. Snap over grill with foam filter. 44db rating. Terminal block electrical connection.
SPECIFICATIONS
- Pull Type Fan
- Model Number ST1026514
- Flow 92 CFM max.
- Voltage 230 AC
- Amperage 0.10 Amps
- Power 18 Watts
- Speed 3100 RPM
- Operating Temperature Range Min. 14° F to Max. 131° F
- IP Rating 55
- Mount 8 holes on 4-5/8″ to 9-1/4″ x 4-5/8″ to 9-1/4″ centers
- Cutout Dimensions 8.78″ x 8.78″
- Blade Dia. 5-9/16″
- Number of Blades 7
- Size 9-7/8″ x 9-7/8″ x 4-3/4″
- Shpg. 6 lbs.
