Description

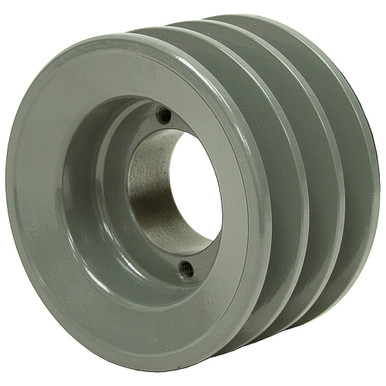

H BUSHED BORE TRIPLE GROOVE PULLEY
Brand new. Triple groove, cast iron pulley. Use with a H-type split taper bushing (sold separately). For use with type “A” and “B” belts. Fully balanced.
(Click here to see the corresponding H bushings)
SPECIFICATIONS
- Grooves 3
- Outside Diameter 10.75″
- Belt Type A (1/2″) Datum Diameter 10.00″
- Belt Type B (5/8″) Datum Diameter 10.40″
- Shpg. 13 lbs.
Outside Diameter Diameter measured at the outside of the pulley.
Datum Diameter The datum diameters are an industry standard reference point used for calculations such as center distance and belt length. The datum system replaces the pitch system for classical belts and pulleys to compensate for differences in manufacturers construction of belts.
