Description

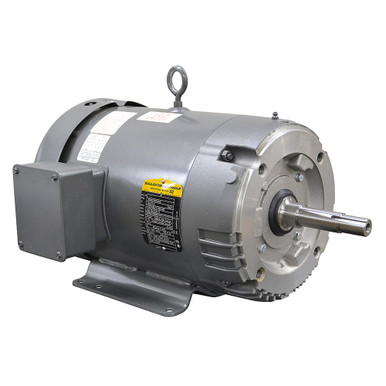

10/7.5 HP 3490 RPM 3 PHASE MOTOR
New, Baldor three phase electric motor model 37M031R210H2.
SPECIFICATIONS
- Brand Baldor
- Model Number 37M031R210H2
- Power 10/7.5 HP
- Voltage 230/460 Volt AC @ 60 Hz, 190/380 Volt AC @ 50 Hz
- Phase 3
- Frequency 60/50 Hz
- Amperage 24/12 Amps @ 60 Hz, 22/11 Amps @ 50 Hz
- Speed 3490 RPM @ 60 Hz, 2900 RPM @ 50 Hz
- Rotation Reversible
- Service Factor 1.15
- Enclosure TEFC
- Duty Continuous
- Frame 215JM
- Face Mount
Four 1/2″-13 tapped holes on 7-1/4″ diameter bolt circle - Rigid Base Mount
Six 0.41″ dia. holes on 8-1/2″ x 5-1/2″ to 7″ centers - Shaft 1″ dia. x 2-1/4″ stepped down to 7/8″ dia. x 1-3/8″ w/ 3/16″ keyway
- Size 19.75″ x 12.75″ x 12.5″
- Shpg. 123 lbs.
