Description

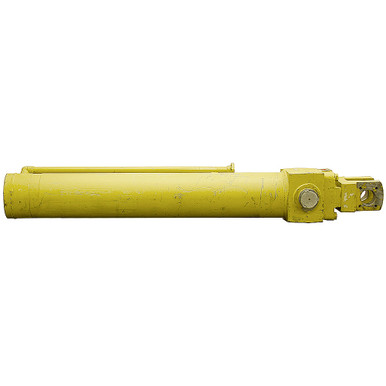

10.5″ x 72″ x 4.5″ DOUBLE ACTING TRUNNION HYDRAULIC CYLINDER
Refurbished, old inventory. Heavy duty, welded cylinder with bolt-on gland retainer. CLARK EQUIPMENT Co. ASSY 2522486. Four mounting holes on one side of clevis tapped 3/4″-16 on 4-3/8″ x 4-3/4″ centers.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 10.5″ x 72″
- Barrel Thickness 3/4″
- Pressure 3000 PSI max.
- Rod Dia. 4.5″
- Rod Thickness Solid
|
- Ports 1-1/2″ four bolt flange, code 61
- Retracted Length 97″ end-to-end
- Shpg. 1750 lbs.
|
| END MOUNTINGS |
- Rod End Clevis
- Width, Outside 9-3/4″
- Width, Inside 4-1/2″
- Throat Depth 8-1/2″
- Pin Hole 4″
|
- Trunnion Male
- Pin Outside Width 19-1/4″
- Pin Inside Width 14-5/16″
- Pin Center To Rod Pin Center 17″
- Pin Center To Base End 76″
- Pin Dia. 4-15/16″
|
