Description

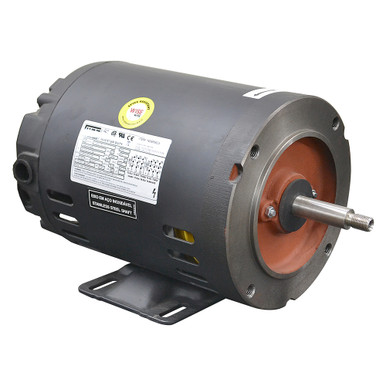

1 HP 3465 RPM THREE PHASE MOTOR
New, WEG three phase electric motor model TO0C040J0000101334.
SPECIFICATIONS
- Brand WEG
- Model NumberTO0C040J0000101334
- Power 1 HP
- Voltage 208-230/460 Volt AC
- Phase 3
- Frequency 60 Hz
- Amperage 3.17-3.11/1.56 Amps
- Speed 3465 RPM
- Rotation Reversible
- Service Factor 1.4
- Enclosure ODP
- Duty Continuous
- Frame E56J
- Face Mount Four 3/8″-16 tapped holes on 5-7/8″ dia. bolt circle
- Rigid Base Mount Four 0.34″ dia. holes on 4-7/8″ x 3″ centers
- Shaft 5/8″ dia. x 1-3/4″ w/ 7/16-20 thread 11/16″ long
- Size 11.75″ x 6.5″ x 6.75″
- Shpg. 26 lbs.
