Description

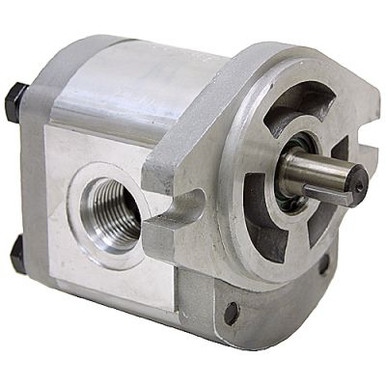

1.95 cu in DYNAMIC GPF2032PC HYDRAULIC PUMP
Brand new, DYNAMIC GP-F20 series hydraulic gear pump. Aluminum center section with cast iron end covers.
SPECIFICATIONS
- Brand Dynamic
- Model Number 71047
- Build Number GP-F20-32-P-C
- Disp. 1.95 cu. in. / rev.
- Pump Type Gear
- Rotation CW
- Pressure:
2300 PSI peak - Speed:
2000 RPM rated
3600 RPM max. - Flow:
15.70 GPM rated
28.26 GPM max. - Mount 2 bolt SAE A
- Shaft 5/8″ dia. x 1-1/4″ long keyed with 5/32″ wide keyway
- Rqd. Filtration 25 micron
- Inlet Port SAE 16
- Outlet Port SAE 12
- Size 5.75″ x 5.125″ x 4.5″
- Shpg. 12 lbs.
