1.526 cu inHydraulic Pump Concentric WP09A1B250

Description

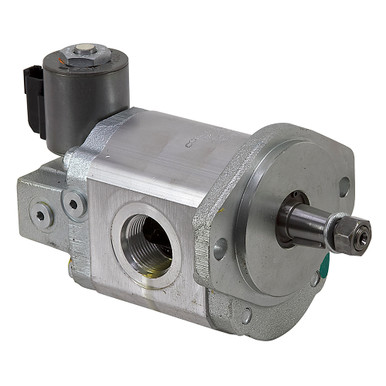

1.526 cu in CONCENTRIC WP09A1B250 HYDRAULIC PUMP
New, CONCENTRIC model WP09A1B250 hydraulic pump. “150-3414” stamped into pump housing. Rear plate has one HYDRAFORCE CV10-23-05 check valve with 3500 PSI rating, 5 PSI bias spring and one HYDRAFORCE TS10-27A proportional pressure relief valve with 12 Volt DC coil, Deutsch DT04-2P connector (rated for 3000 PSI).

SPECIFICATIONS

• Manufacturer Concentric
• Model WP09A1B250
• Disp. 1.526 cu. in. / rev.
• Pump Type Gear
• Rotation Clockwise
• Pressure:
     3000 PSI Cont.
• Speed:
     3000 RPM max.
• Flow:
      Unknown
• Mount Two-bolt SAE A
• Shaft 3/4″ dia. x 1-3/4″ tapered shaft w/ threaded end and castle nut
• Inlet Port SAE 16
• Outlet Port SAE 12
• Size 6.75″ x 5.5625″ x 5″
• Shpg. 15 lbs.
