Description

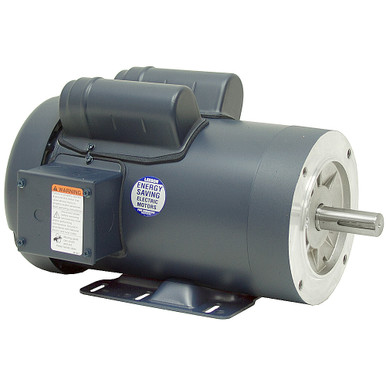

1-1/2 HP 1800 RPM 115/208-230 56HC VOLT AC FACE AND BASE MOUNT MOTOR
Brand new, Leeson model C6K17FK2 L general purpose electric motor. Capacitor start and run. Steel housing. No thermal overload protection. Made in the USA.
SPECIFICATIONS
- Brand Leeson
- Model Number C6K17FK2 L
- Catalog Number 110910
- Power 1-1/2 HP
- Voltage 115/208-230 Volt AC
- Amperage 17.2/8.8-8.6 Amps
- Speed 1800 RPM
- Rotation Reversible
- Phase 1
- Service Factor 1.0
- Bearings Ball
- Enclosure TEFC
- Duty Continuous
- Frame 56HC
- Face Mount Four 3/8″-16 tapped holes on 5-7/8″ dia. bolt circle
- Rigid Base Mount Six 0.34″ dia. holes on 4-7/8″ x 3″ to 5″ centers
- Shaft 5/8″ dia. x 1-7/8″ w/ 3/16″ keyway
- Size 10.93″ x 8.89″ x 8.5″
- Shpg. 39 lbs.
