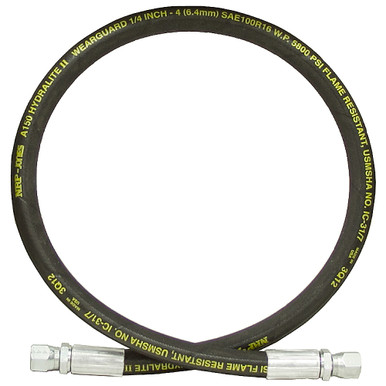

1/4" x 96" JIC 4F Swivel x JIC 4F Swivel SAE 100R16 Hydraulic Hose Assembly 5800 PSI NRP Jones

1/4″ x 96″ JIC 4F Swivel x JIC 4F Swivel SAE 100R16 Hydraulic Hose Assembly 5800 PSI NRP Jones

Original price was: $27.65.Current price is: $8.30.

SKU: 901286 Category:

Description

1/4″ X 96″ JIC 4F X JIC 4F 5800 PSI HYDRAULIC HOSE
Brand new, two-wire braided SAE 100R16 hydraulic hose assembly. Assembled in USA from NRP JONES hose stock and USA-made plated steel fittings. Oil and abrasion resistant Wearguard® neoprene jacket, MSHA approved. Oil resistant nitrile tube. Length measured from end to end.

SPECIFICATIONS

  • Hose Type SAE 100R16 HydraLite II, Two-Wire Braided
  • Overall Length 96″
  • Inside Hose Diameter 1/4″
  • Outside Jacket Diameter 0.57″
  • Fittings JIC 4F, Swivel
  • Minimum Bend Radius 2″
  • Temperature Range -40° to 250°F
  • Working Pressure 5800 PSI
  • Burst Pressure 23200 PSI
  • Shpg. 3.05 lbs.
Compatible Hose Clamps
1/4″ Two Wire Hydraulic Hose Clamp A2-14H-A 902268
1/4″ Two Wire Dual Hydraulic Hose Clamp AT2-14H-A 902275
