Description

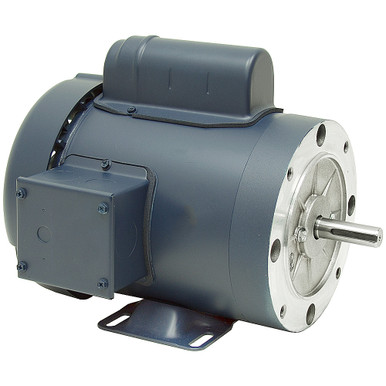

1/4 HP 1800 RPM 115/208-230 VOLT AC FACE AND BASE MOUNT MOTOR
Brand new, Leeson model C4C17FK4B general purpose electric motor. Capacitor start. Steel housing. No thermal overload protection.
SPECIFICATIONS
- Brand Leeson
- Model Number C4C17FK4B
- Catalog Number 102916
- Power 1/4 HP
- Voltage 115/208-230 Volt AC
- Amperage 5.6/2.6-2.8 Amps
- Speed 1800 RPM
- Rotation Reversible
- Phase 1
- Service Factor 1.15
- Bearings Ball
- Enclosure TEFC
- Duty Continuous
- Frame 56C
- Face Mount Four 3/8″-16 tapped holes on 5-7/8″ dia. bolt circle
- Rigid Base Mount Four 0.34″ dia. holes on 4-7/8″ x 3″ centers
- Shaft 5/8″ dia. x 1-7/8″ w/ 3/16″ keyway
- Size 7.81″ x 7.41″ x 7.84″
- Shpg. 22 lbs.
