Description

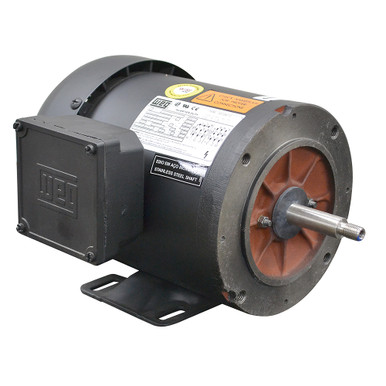

1/2 HP 3460 RPM THREE PHASE MOTOR
New, WEG three phase electric motor model TE01C040J00001007.
SPECIFICATIONS
- Power1/2 HP
- Voltage 208-230/460 AC
- Phase 3
- Frequency 60 Hz
- Amperage1.87-1.7/0.85 Amps
- Speed3460 RPM
- RotationCCW
- Service Factor1.15
- EnclosureTEFC
- Duty Continuous
- FrameB56J
- Face Mount
Four 3/8″-16 tapped holes on
5-7/8″ diameter bolt circle - Rigid Base Mount
Four 0.34″ diam. holes on 4-7/8″ x 3″ centers - Shaft 5/8″ dia. x 1-3/4″ w/ 7/16-20 thread 11-16″ long
- Size11-3/4″ x 8-5/8″ x 7-1/8″
- Shpg.26 lbs.
