Description
Type Code MBT 5722 , Weight 2.82 Kg , Ambient temp. max. 70 °C , Ambient temp. max. 158 °F , EAN no. 5702423132607 More details

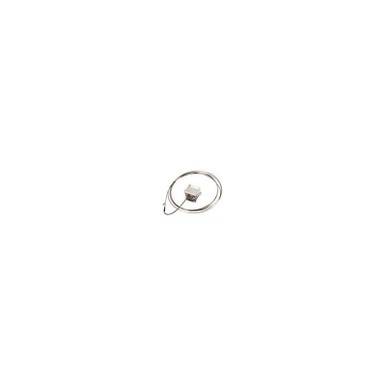

Designed specially for monitoring bearing temperature in stern tubes: – flexible sheath (bending radius down to 2 × sheath diameter) – moveable compression fi tting – robust construction with resistance to shock and vibration, to IEC 68-2-6. Type MBT 5722 with Pt100 resistance element for media temperatures up to 400°C Short reaction time. Approvals – Lloyds Register of Shipping, LR – Germanischer Lloyd, GL – Bureau Veritas, BV – Det Norske Veritas, DNV – Nippon Kaiji Kyokai, ClassNK
| Type Code | MBT 5722 |
| Weight | 2.82 Kg |
| Ambient temp. max. | 70 °C |
| Ambient temp. max. | 158 °F |
| EAN no. | 5702423132607 |
| Electr. conn. | Box (metal/plastic) |
| Encl. | IP65 |
| Insert length | 196,85 in |
| Insert length | 5.000 mm |
| Output sign. | Ohm |
| Prot. tube diam. (ø) | 0,18 in |
| Prot. tube diam. (ø) | 4,5 mm |
| Prot. tube mat. | AISI 316 Ti |
| Resistance value | 1 x Pt x 100 |
| Sensor element std. | EN 60751 |
| Sensor element tol. | Class B |
| Sensor Insert | fixed |
| Temp. range | -50 – 200 °C |
| Temp. range | -58 – 392 °F |
| Type designation | MBT 5722-001-050-0102-000-0000 |
| Wires | 3 PC |
