Description
Product details
| Gross weight | 0.16 kg |
| Net weight | 0.16 kg |
| EAN | 5702428062381 |
| Gross weight | 0.16 kg |
| Net weight | 0.16 kg |
| EAN | 5702428062381 |
| Ambient temperature max. [°C] | 80 °C |
| Ambient temperature max. [°F] | 176 °F |
| Cable length [in] | 236.22 in |
| Cable length [m] | 6 m |
| Cable tempr. range [°C] [Max] | 80 °C |
| Cable tempr. range [°C] [Min] | -30 °C |
| Cable type | PVC |
| Electrical connection | CABLE WITH PINS |
| Electrical connection size | 2 wire |
| Measuring range [°C] [Max] | 150 °C |
| Measuring range [°C] [Min] | -55 °C |
| Measuring range [°F] [Max] | 302 °F |
| Measuring range [°F] [Min] | -67 °F |
| Packing format | Industrial pack |
| Product family name | EKS |
| Product group | Sensors |

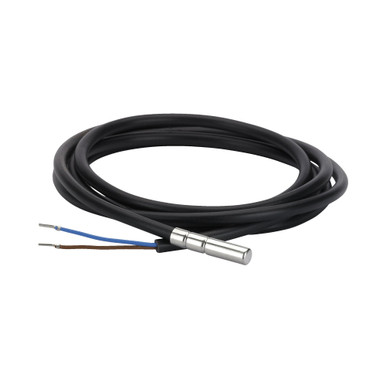

| Product name | Temperature sensor |
| Protection tube diameter [in] | 0.24 in |
| Protection tube diameter [mm] | 6 mm |
| Protection tube length [in] | 1.18 in |
| Protection tube length [mm] | 30 mm |
| Protection tube material | Stainless steel |
| PTC Element characteristic | 990 Ohm/25°C |
| Quantity per packing format | 80 pc |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element tolerance | ± 1% |
| Sensor element type | PTC |
| Sensor Insert | Fixed |
| Type | EKS 111 |
| Wires [pcs] | 2 pc |
| Ambient temperature max. [°C] | 80 °C |
| Ambient temperature max. [°F] | 176 °F |
| Cable length [in] | 236.22 in |
| Cable length [m] | 6 m |
| Cable tempr. range [°C] [Max] | 80 °C |
| Cable tempr. range [°C] [Min] | -30 °C |
| Cable type | PVC |
| Electrical connection | CABLE WITH PINS |
| Electrical connection size | 2 wire |
| Measuring range [°C] [Max] | 150 °C |
| Measuring range [°C] [Min] | -55 °C |
| Measuring range [°F] [Max] | 302 °F |
| Measuring range [°F] [Min] | -67 °F |
| Packing format | Industrial pack |
| Product family name | EKS |
| Product group | Sensors |
| Product name | Temperature sensor |
| Protection tube diameter [in] | 0.24 in |
| Protection tube diameter [mm] | 6 mm |
| Protection tube length [in] | 1.18 in |
| Protection tube length [mm] | 30 mm |
| Protection tube material | Stainless steel |
| PTC Element characteristic | 990 Ohm/25°C |
| Quantity per packing format | 80 pc |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element tolerance | ± 1% |
| Sensor element type | PTC |
| Sensor Insert | Fixed |
| Type | EKS 111 |
| Wires [pcs] | 2 pc |
