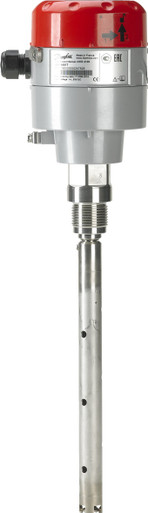

084H4517 Danfoss Liquid level sensor, AKS 4100

084H4517 Danfoss Liquid level sensor, AKS 4100

Original price was: $4,885.38.Current price is: $977.08.

SKU: 084H4517 Category: Tag:

Description

Product details

Gross weight 3.73 kg
Net weight 2.12 kg
EAN 5702428934008
Gross weight 3.73 kg
Net weight 2.12 kg
EAN 5702428934008



Ambient temperature range [°C] [Max] 80 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 176 °F
Ambient temperature range [°F] [Min] -40 °F
Connection size [in] 1
Connection type G
Design Coaxial version D22
Enclosure rating IP IP67
Insertion length [in] 11.02 in
Insertion length [mm] 280 mm
Load resistance max. [Ohm] 500 Ohm
Max. Working Pressure [bar] 100 bar
Max. Working Pressure [psig] 1450 psig
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Packing format Single pack
Power consumption [W] 0.7 W
Product description Liquid Level Sensor
Product group Sensors
Product name Liquid level sensor
Quantity per packing format 1 pc
Refrigerants R717
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 14 V
Temperature range [°C] [Max] 100 °C
Temperature range [°C] [Min] -60 °C
Temperature range [°F] [Max] 212 °F
Temperature range [°F] [Min] -76 °F
Type AKS 4100
Ambient temperature range [°C] [Max] 80 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 176 °F
Ambient temperature range [°F] [Min] -40 °F
Connection size [in] 1
Connection type G
Design Coaxial version D22
Enclosure rating IP IP67
Insertion length [in] 11.02 in
Insertion length [mm] 280 mm
Load resistance max. [Ohm] 500 Ohm
Max. Working Pressure [bar] 100 bar
Max. Working Pressure [psig] 1450 psig
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Packing format Single pack
Power consumption [W] 0.7 W
Product description Liquid Level Sensor
Product group Sensors
Product name Liquid level sensor
Quantity per packing format 1 pc
Refrigerants R717
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 14 V
Temperature range [°C] [Max] 100 °C
Temperature range [°C] [Min] -60 °C
Temperature range [°F] [Max] 212 °F
Temperature range [°F] [Min] -76 °F
Type AKS 4100

Design: Coaxial version D22, Connection size [in]: 1, Connection type: G, Insertion length [mm]: 280, Supply voltage [V] DC [Min]: 14.00, Supply voltage [V] DC [Max]: 30.00
