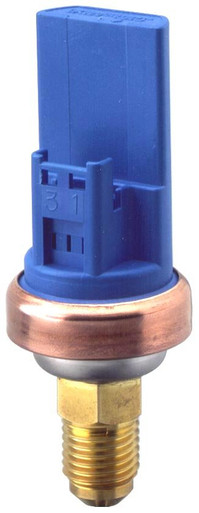

061H5067 Danfoss Pressure transmitter, XSK

061H5067 Danfoss Pressure transmitter, XSK

Original price was: $202.35.Current price is: $50.59.

SKU: 061H5067 Category: Tag:

Description

Product details

Gross weight 0.06 kg
Net weight 0.06 kg
EAN 5702428275156
Gross weight 0.06 kg
Net weight 0.06 kg
EAN 5702428275156



+ supply Pin 1
– common Pin 3
Accuracy, max. +/- FS [%] 3 %
Ambient temperature range [°C] [Max] 70 °C
Ambient temperature range [°C] [Min] -20 °C
Electrical conn. Male/Female Male
Electrical connection Molex
Enclosure rating IP IP66
Medium temperature range [°C] [Max] 70 °C
Medium temperature range [°C] [Min] -20 °C
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 38.5 bar
Packing format Industrial pack
Pressure connection HEX [mm] 12 mm
Pressure connection size 7/16-20
Pressure connection standard ASME B1.1
Pressure connection type UNF
Pressure Male/Female Male
Pressure range [bar] [Max] 30 bar
Pressure range [bar] [Min] 0 bar
Pressure unit reference Gauge (relative)
Product family name XSK
Product group Sensors
Product name Pressure transmitter
Quantity per packing format 100 pc
Refrigerants R134a
R404A
R407C
R410A
Specification key XSK-AC30B-U186
Supply voltage [V] DC [Max] 28 V
Supply voltage [V] DC [Min] 10.5 V
Type XSK
+ supply Pin 1
– common Pin 3
Accuracy, max. +/- FS [%] 3 %
Ambient temperature range [°C] [Max] 70 °C
Ambient temperature range [°C] [Min] -20 °C
Electrical conn. Male/Female Male
Electrical connection Molex
Enclosure rating IP IP66
Medium temperature range [°C] [Max] 70 °C
Medium temperature range [°C] [Min] -20 °C
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 38.5 bar
Packing format Industrial pack
Pressure connection HEX [mm] 12 mm
Pressure connection size 7/16-20
Pressure connection standard ASME B1.1
Pressure connection type UNF
Pressure Male/Female Male
Pressure range [bar] [Max] 30 bar
Pressure range [bar] [Min] 0 bar
Pressure unit reference Gauge (relative)
Product family name XSK
Product group Sensors
Product name Pressure transmitter
Quantity per packing format 100 pc
Refrigerants R134a
R404A
R407C
R410A
Specification key XSK-AC30B-U186
Supply voltage [V] DC [Max] 28 V
Supply voltage [V] DC [Min] 10.5 V
Type XSK

Pressure connection type: UNF, Pressure connection size: 7/16-20, Electrical connection: Molex

Product details

Gross weight 0.06 kg
Net weight 0.06 kg
EAN 5702428275156
Gross weight 0.06 kg
Net weight 0.06 kg
EAN 5702428275156



+ supply Pin 1
– common Pin 3
Accuracy, max. +/- FS [%] 3 %
Ambient temperature range [°C] [Max] 70 °C
Ambient temperature range [°C] [Min] -20 °C
Electrical conn. Male/Female Male
Electrical connection Molex
Enclosure rating IP IP66
Medium temperature range [°C] [Max] 70 °C
Medium temperature range [°C] [Min] -20 °C
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 38.5 bar
Packing format Industrial pack
Pressure connection HEX [mm] 12 mm
Pressure connection size 7/16-20
Pressure connection standard ASME B1.1
Pressure connection type UNF
Pressure Male/Female Male
Pressure range [bar] [Max] 30 bar
Pressure range [bar] [Min] 0 bar
Pressure unit reference Gauge (relative)
Product family name XSK
Product group Sensors
Product name Pressure transmitter
Quantity per packing format 100 pc
Refrigerants R134a
R404A
R407C
R410A
Specification key XSK-AC30B-U186
Supply voltage [V] DC [Max] 28 V
Supply voltage [V] DC [Min] 10.5 V
Type XSK
+ supply Pin 1
– common Pin 3
Accuracy, max. +/- FS [%] 3 %
Ambient temperature range [°C] [Max] 70 °C
Ambient temperature range [°C] [Min] -20 °C
Electrical conn. Male/Female Male
Electrical connection Molex
Enclosure rating IP IP66
Medium temperature range [°C] [Max] 70 °C
Medium temperature range [°C] [Min] -20 °C
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 38.5 bar
Packing format Industrial pack
Pressure connection HEX [mm] 12 mm
Pressure connection size 7/16-20
Pressure connection standard ASME B1.1
Pressure connection type UNF
Pressure Male/Female Male
Pressure range [bar] [Max] 30 bar
Pressure range [bar] [Min] 0 bar
Pressure unit reference Gauge (relative)
Product family name XSK
Product group Sensors
Product name Pressure transmitter
Quantity per packing format 100 pc
Refrigerants R134a
R404A
R407C
R410A
Specification key XSK-AC30B-U186
Supply voltage [V] DC [Max] 28 V
Supply voltage [V] DC [Min] 10.5 V
Type XSK
