Description

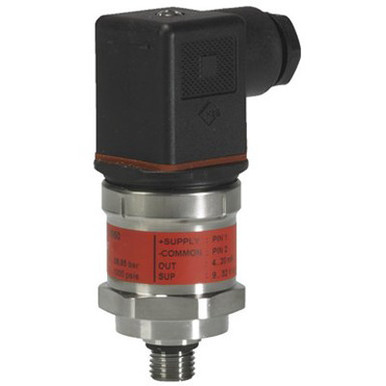

Pressure Transmitter; MBS 3050; 0-3000 psig; 7/16-20 UNF; 4-20mA output
Product Specifications
| Product Attribute | Attribute Value | Search |
|---|---|---|
| IP Rating | IP67 | |
| Measurement Range | 0 to 600 bar | |
| Measurement Units | bar | |
| Output | 4-20 mA | |
| Package Type | Cylinder | |
| Series | MBS 3050 Series | |
| Temperature, Ambient | -40 to 85° C | |
| Type | Gauge | |
| UPC Code | 5702423229345 |
Overview
Danfoss MBS 3050 Series – Compact pressure transmitters with pulse snubber:
The compact heavy-duty pressure transmitter MBS 3050 is designed for use in hydraulic applications with severe medium influences like cavitation, liquid hammer or pressure peaks and offers a reliable pressure measurement, even under harsh environmental conditions. The flexible pressure transmitter programme covers a 4-20 mA output signal, absolute and gauge (relative) versions, measuring ranges from 0-1 to 0-600 bar and a wide range of pressure- and electrical connections. Excellent vibration stability, robust construction, and a high degree of EMC/EMI protection equip the pressure transmitter to meet the most stringent industrial requirements.
Features:
