Description
Type Code MBS 33 , Weight 0.325 Kg , – common BLACK , + supply BROWN , Accuracy (max.) ±FS 0More details

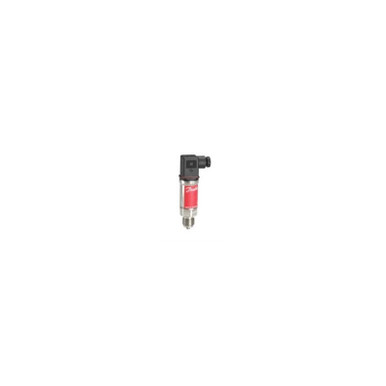

Pressure transmitter MBS 33 is designed for use in almost all industrial applications, and offers a reliable pressure measurement, even under harsh environmental conditions. The flexible pressure transmitter programme covers a 4-20 mA output signal, absolute and gauge (relative) versions, measuring ranges from 0-1 to 0-600 bar and a wide range of pressure and electrical connections. Excellent vibration stability, robust construction, and a high degree of EMC/EMI protection equip the pressure transmitter to meet the most stringent industrial requirements. 4 – 20 mA output signal Operating temperature -40 to 85° C Measuring range 0 – 600 bar A wide range of pressure connections available For use in severe industrial environments
| Type Code | MBS 33 |
| Weight | 0.325 Kg |
| – common | BLACK |
| + supply | BROWN |
| Accuracy (max.) ±FS | 0,80 % |
| Accuracy (typ.) ±FS | 0,3 % |
| Adj. zero point/span | No |
| Ambient temp. | -30 – 85 °C |
| Ambient temp. | -22 – 185 °F |
| Approval | ATEX |
| Approval comments | ATEX Ex nA IIA T3 Gc |
| Cable length | 79,00 in |
| Cable length | 2,00 m |
| Compensated temp. range | 0 – 80 °C |
| Compensated temp. range | 32 – 176 °F |
| EAN no. | 5702423029839 |
| Electr. conn. comments | Screened |
| Electr. conn. type | Cable |
| Encl. | IP67 |
| Flush diaphr. | No |
| Intrins. safe | No |
| Medium temp. range | -40 – 85 °C |
| Medium temp. range | -40 – 185 °F |
| Non-linearity BFSL ±FS [%] | 0,20 % |
| Output sign. type | 4 – 20 mA |
| Overload press. max. | 20,0 bar |
| Pressure conn. HEX | 27,0 |
| Pressure conn. std. | EN 837 |
| Pressure conne. type | G – 1/2 Male |
| Pressure range | 0,00 – 6,00 bar |
| Press. unit ref. | Gauge (relative) |
| Pulse-snubber | No |
| Response time max. | 4 ms |
| Spec. key | MBS 33-1811-3AB08 |
| Supply current max. | 28 mA |
| Supply volt. | 10,00 – 30,00 V |
